Individual hose record

4672335 Hose Repair Specifications

Excavator · Hitachi · ZX300LC-6N · Solenoid Valve

Finished length2,150 mm

Locate this hose

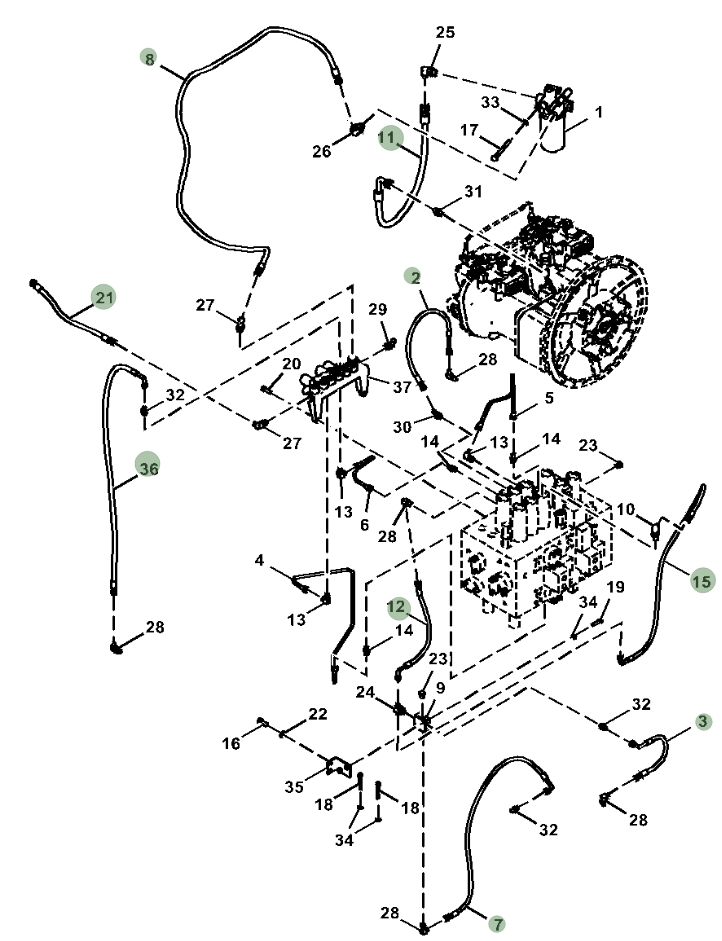

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4672335 before removing the hose.

Hitachi ZX300LC-6N installation diagram showing hydraulic hose 4672335 at Pipe No. 8 — Hitachi ZX300LC-6NPart 4672335 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4672335
Diagram pipe number: 8
Installation route: 电磁阀~先导滤芯
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,150 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 21

FF528617

Installation route: 电磁阀(液压泵)~

Length: 2,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 90°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 23

FF531628

Installation route: 电磁阀(液压泵)~

Length: 1,820 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 20

4630949

Installation route: 电磁阀~中转接头

Length: 560 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
