Individual hose record

KBJ11820 Hose Repair Specifications

Excavator · Case · CX300B · Hydraulic Tank

Finished length760 mm

Locate this hose

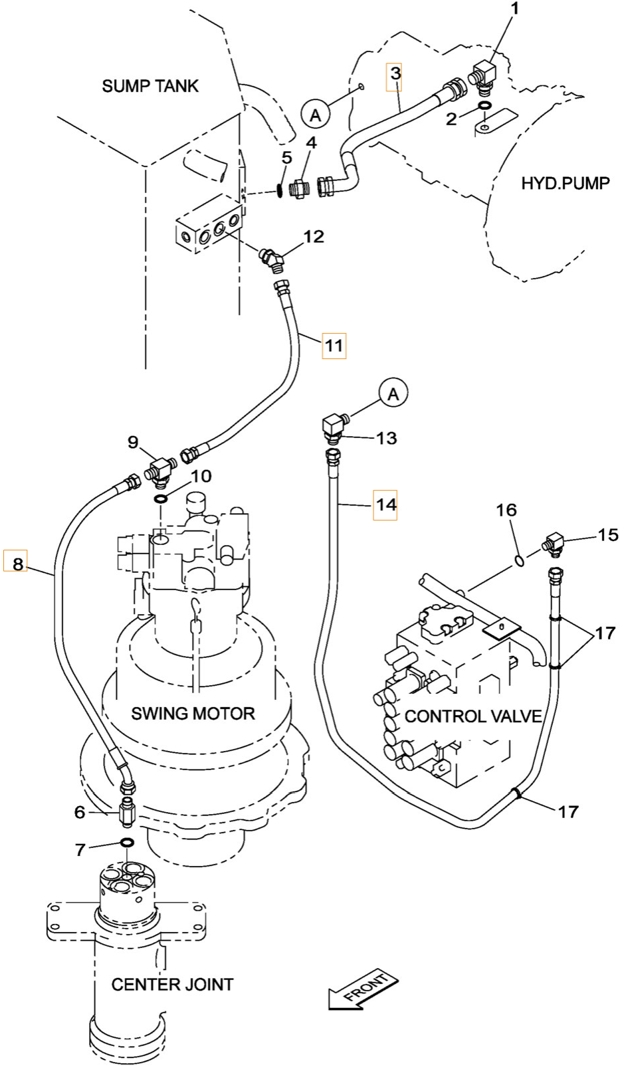

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KBJ11820 before removing the hose.

Part number: KBJ11820
Diagram pipe number: 11
Installation route: 液压油箱~回转马达
Hose specification: DN19;2SN-12;21.5MPa
Finished length: 760 mm
Working pressure: 21.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: 液压油箱~过渡阀块顶(液压油箱)

Length: 280 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 70

Installation route: 液压油箱过渡阀块~接头(进回油阀)

Length: 3,450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 9

Installation route: 液压油箱~过渡阀块底(液压油箱)

Length: 1,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
