Individual hose record
DS2121026 Hose Repair Specifications
Excavator · Doosan · DX140W-5 · Solenoid Valve
Finished length850 mm
Locate this hose

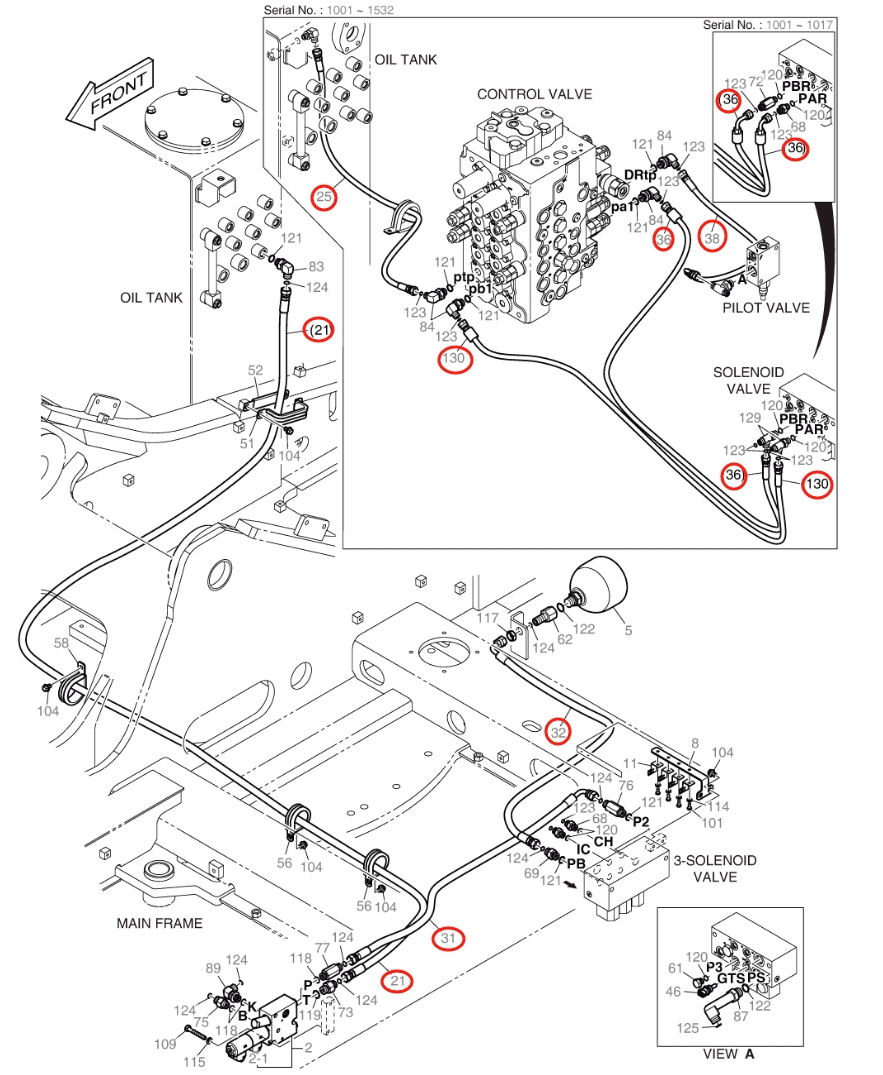

Installation diagram — Pipe No. 31
Locate Pipe No. 31 in the diagram, then confirm part number DS2121026 before removing the hose.
Repair specifications
- Part number
- DS2121026
- Diagram pipe number
- 31
- Installation route
- 电磁阀P2口~变速箱控制阀P口
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 850 mm
- Working pressure
- 18 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
