Individual hose record
4207997 Hose Repair Specifications
Excavator · Hitachi · EX100WD · Solenoid Valve
Finished length350 mm
Locate this hose

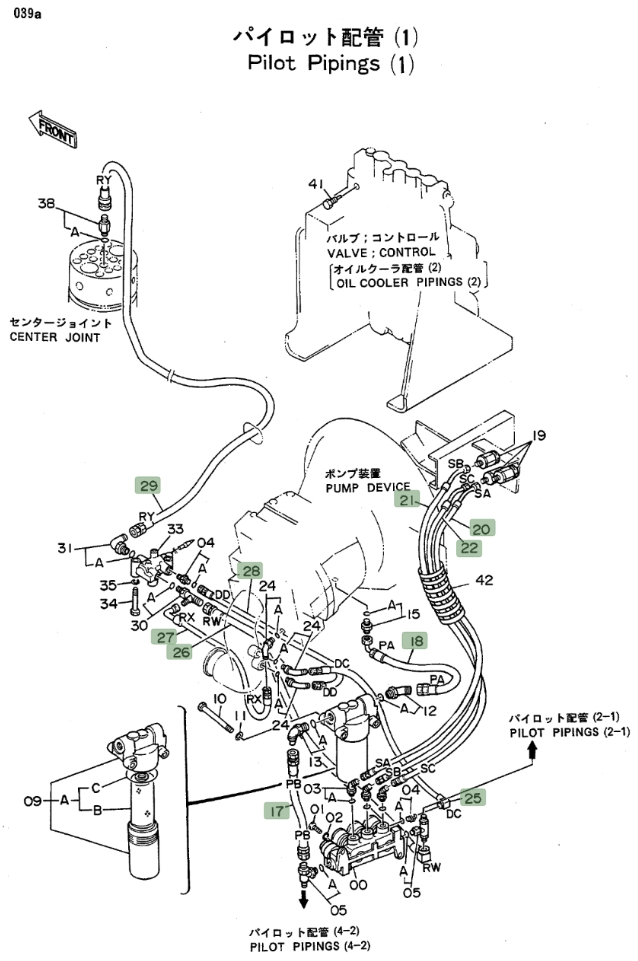

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4207997 before removing the hose.
Repair specifications
- Part number
- 4207997
- Diagram pipe number
- 17
- Installation route
- 电磁阀~先导滤芯
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 350 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
