Individual hose record
730502009588 Hose Repair Specifications
Excavator · Sunward · SWE25UF · Swivel Joint
Finished length420 mm
Locate this hose

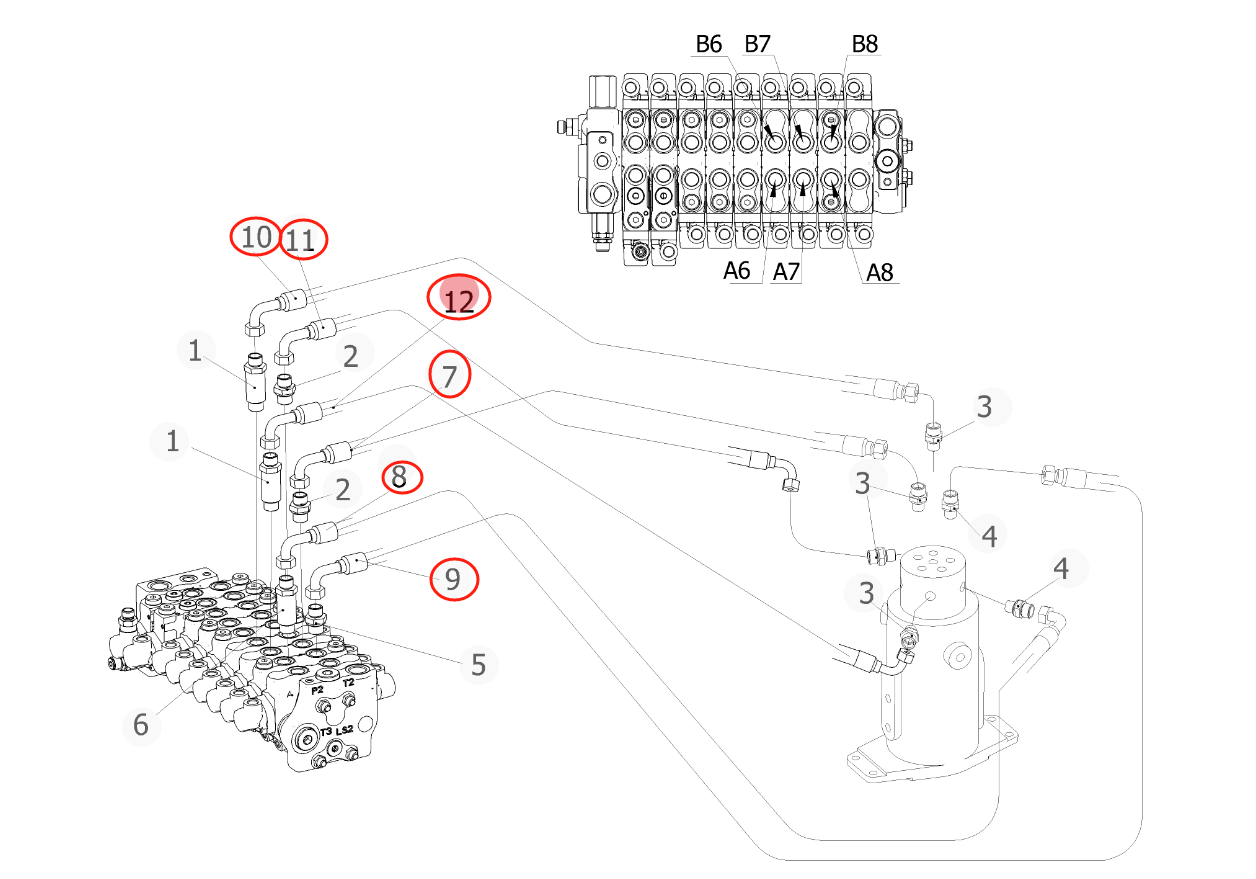

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 730502009588 before removing the hose.
Repair specifications
- Part number
- 730502009588
- Diagram pipe number
- 7
- Installation route
- 回转接头~分配阀B7
- Hose specification
- DN10;2SN-06;27.5MPa
- Finished length
- 420 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
