Individual hose record
4602186 Hose Repair Specifications
Excavator · Hitachi · ZX135US · Attachments – Breaker
Finished length2,950 mm
Locate this hose

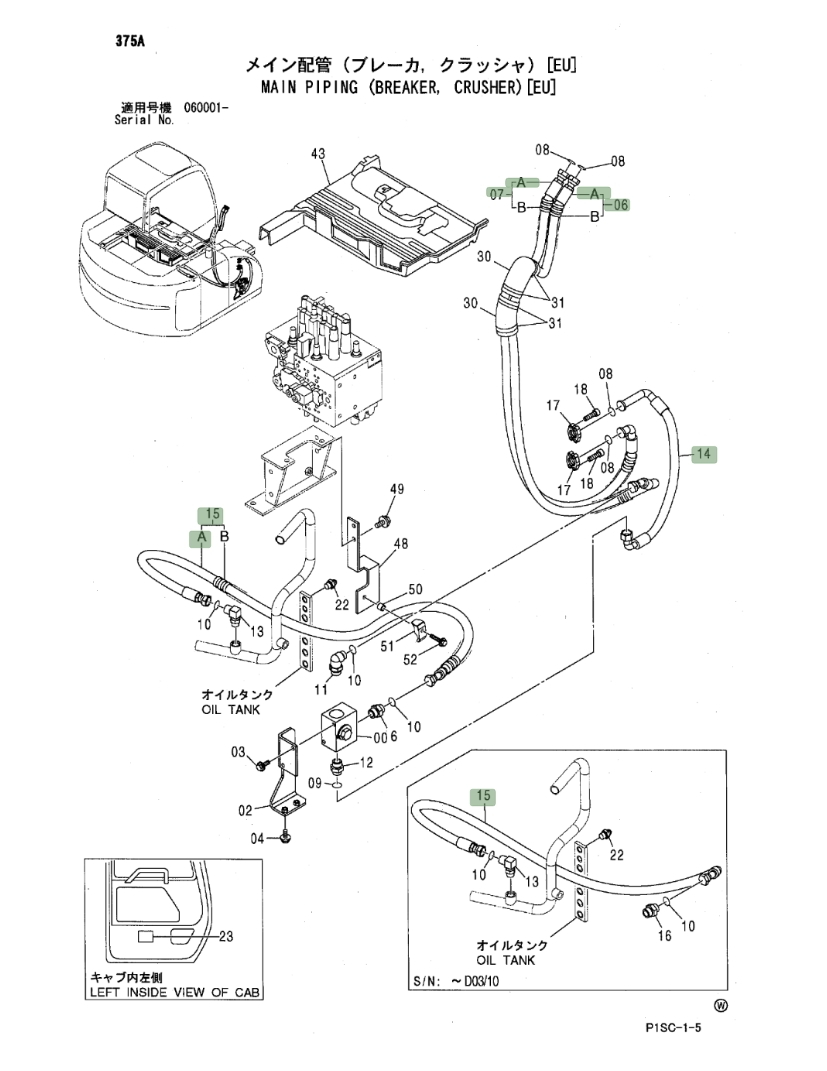

Installation diagram — Pipe No. 6A
Locate Pipe No. 6A in the diagram, then confirm part number 4602186 before removing the hose.
Repair specifications
- Part number
- 4602186
- Diagram pipe number
- 6A
- Installation route
- 大臂(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN19;4SP-12;34.5Mpa
- Finished length
- 2,950 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,900 mm
- Specification
- DN10;2SN-06;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
For reference only. Confirm the actual hose before fabrication.
