Individual hose record
8U-0663 Hose Repair Specifications
Excavator · Caterpillar · CAT®213B · Attachments – Lock Valve
Finished length1,090 mm
Locate this hose

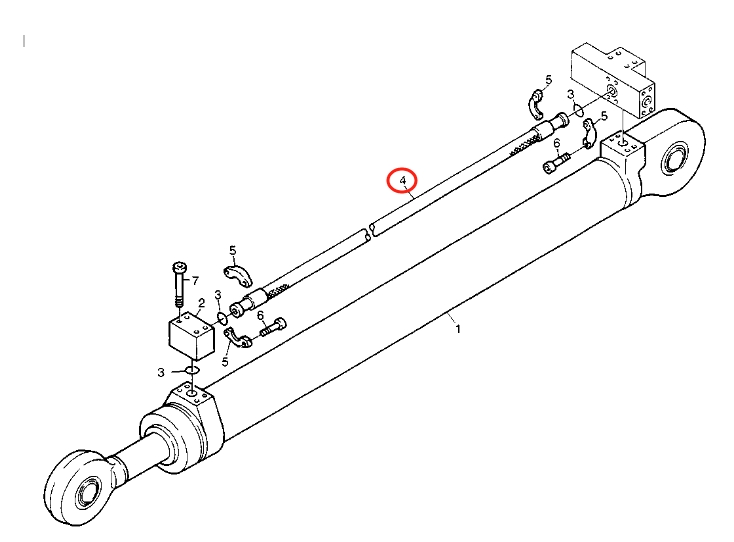

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 8U-0663 before removing the hose.
Repair specifications
- Part number
- 8U-0663
- Diagram pipe number
- 4
- Installation route
- 铲斗油缸锁止阀~过渡阀块(油缸锁止阀)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 1,090 mm
- Working pressure
- 35 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,015 mm
- Specification
- DN10;2SN-6;33Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Diagram Pipe No. 11
8U-1354
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 461 mm
- Specification
- DN6;2SN-4;40Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
