8K-4174 Hose Repair Specifications

Excavator · Caterpillar · CAT®225 · Fuel Lines

Finished length279 mm

Locate this hose

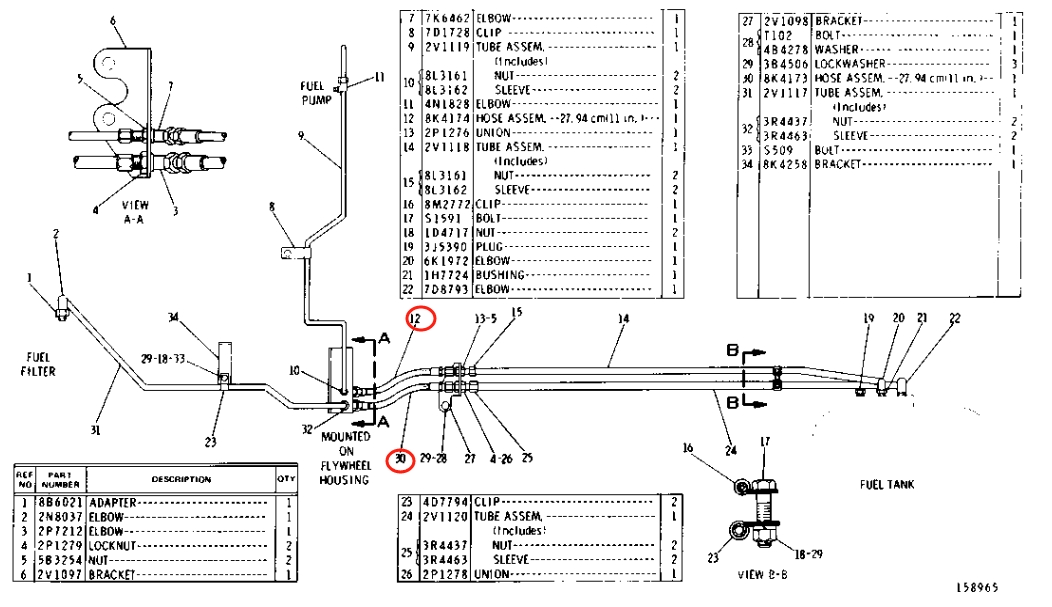

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 8K-4174 before removing the hose.

Caterpillar CAT®225 installation diagram showing hydraulic hose 8K-4174 at Pipe No. 12 — Caterpillar CAT®225Part 8K-4174 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 8K-4174
Diagram pipe number: 12
Installation route: 燃油泵~燃油箱
Hose specification: DN6;1SN-4;19.2Mpa
Finished length: 279 mm
Working pressure: 19.2 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
