Individual hose record

4250888 Hose Repair Specifications

Excavator · Hitachi · ZX270LC · Attachments – Breaker

Finished length1,200 mm

Locate this hose

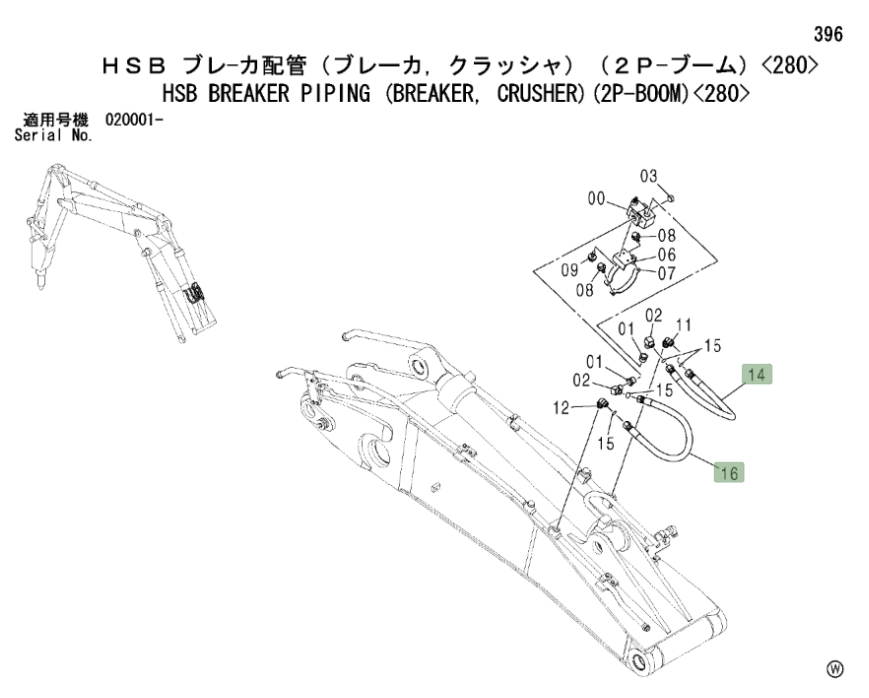

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4250888 before removing the hose.

Part number: 4250888
Diagram pipe number: 14
Installation route: 大臂(后段)~卸压安全阀(破碎器)
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 1,200 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 7

Installation route: 小臂破碎器截止阀

Length: 1,800 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: 大臂(破碎器)~小臂(破碎器)

For reference only. Confirm the actual hose before fabrication.
