Individual hose record

8R-0944 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Solenoid Valve

Finished length687 mm

Locate this hose

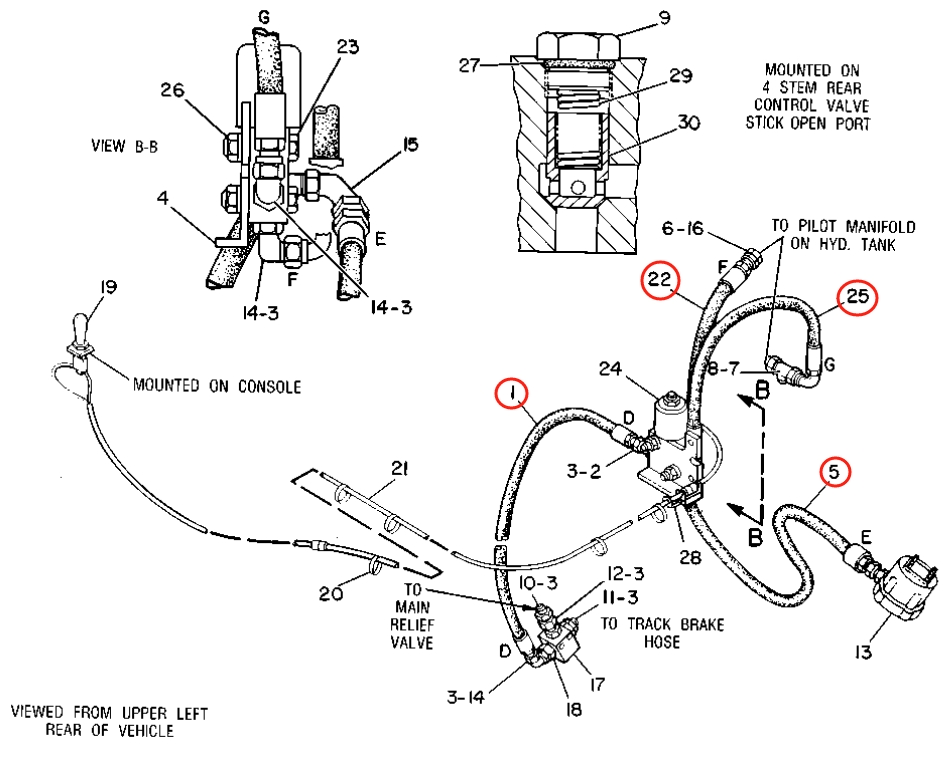

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 8R-0944 before removing the hose.

Caterpillar CAT®225B installation diagram showing hydraulic hose 8R-0944 at Pipe No. 1
Caterpillar CAT®225BPart 8R-0944 · Pipe No. 1Open full-size diagram

Repair specifications

Part number
8R-0944
Diagram pipe number
1
Installation route
电磁阀(液压油箱后)~安全阀(液压油箱后)
Hose specification
DN10;1SN-6;15.7Mpa
Finished length
687 mm
Working pressure
15.7 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 7

5T-4525

Installation route: 电磁阀(分配阀右下)~安全阀(回转马达后)

Length
522 mm
Specification
DN10;4SP-6;28Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
