Individual hose record
111-6694 Hose Repair Specifications
Excavator · Caterpillar · CAT®307-A · Swing Motor
Finished length498 mm
Locate this hose

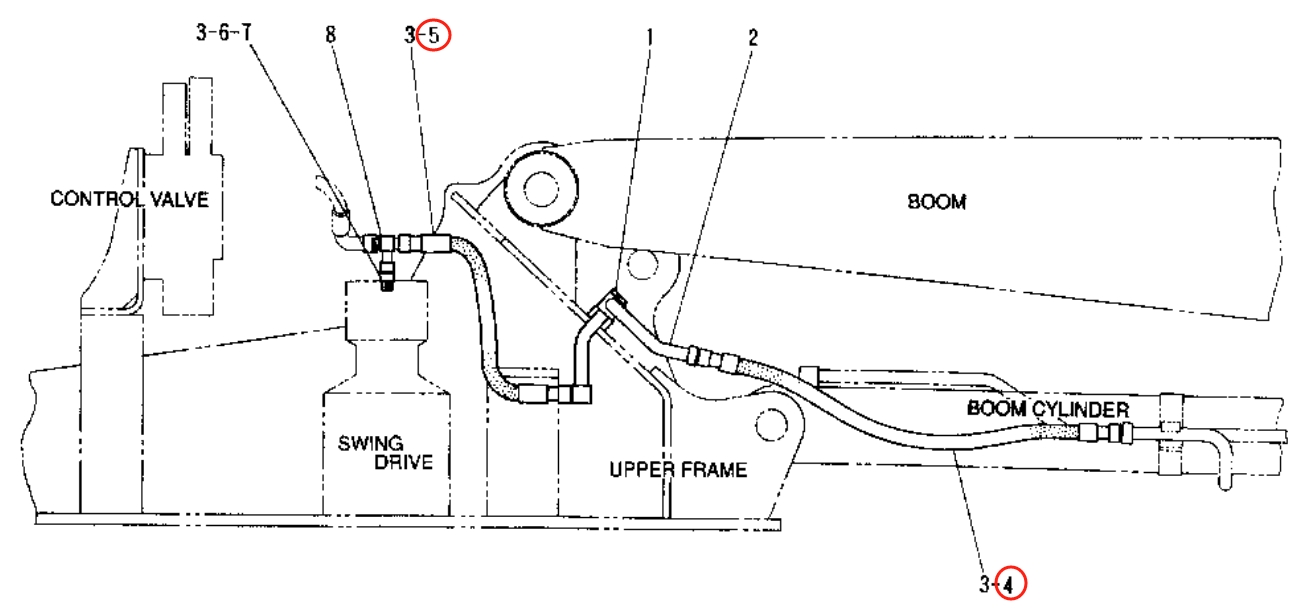

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 111-6694 before removing the hose.
Repair specifications
- Part number
- 111-6694
- Diagram pipe number
- 5
- Installation route
- 回转马达~过渡阀块(回转接头前)
- Hose specification
- DN13;1SN-8;14Mpa
- Finished length
- 498 mm
- Working pressure
- 14 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
