Individual hose record
4698020 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Hydraulic Tank
Finished length820 mm
Locate this hose

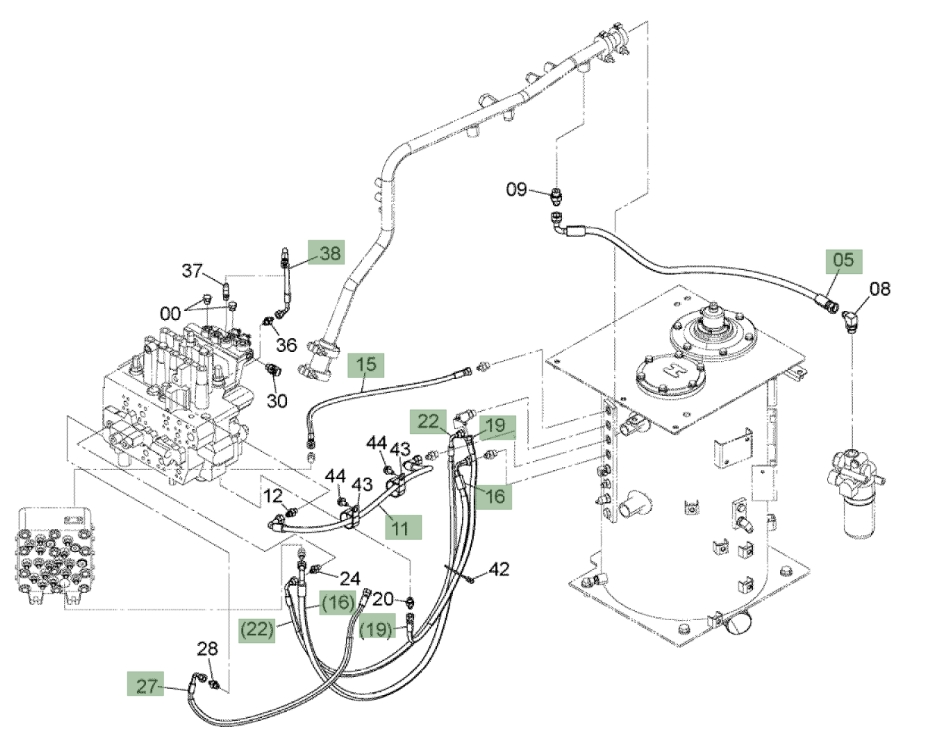

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4698020 before removing the hose.
Repair specifications
- Part number
- 4698020
- Diagram pipe number
- 5
- Installation route
- 回油铁管(液压油箱)~先导滤芯
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 820 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
