3V-1330 Hose Repair Specifications

Excavator · Caterpillar · CAT®245D · Hydraulic Tank

Finished length686 mm

Locate this hose

Installation diagram — Pipe No. 22

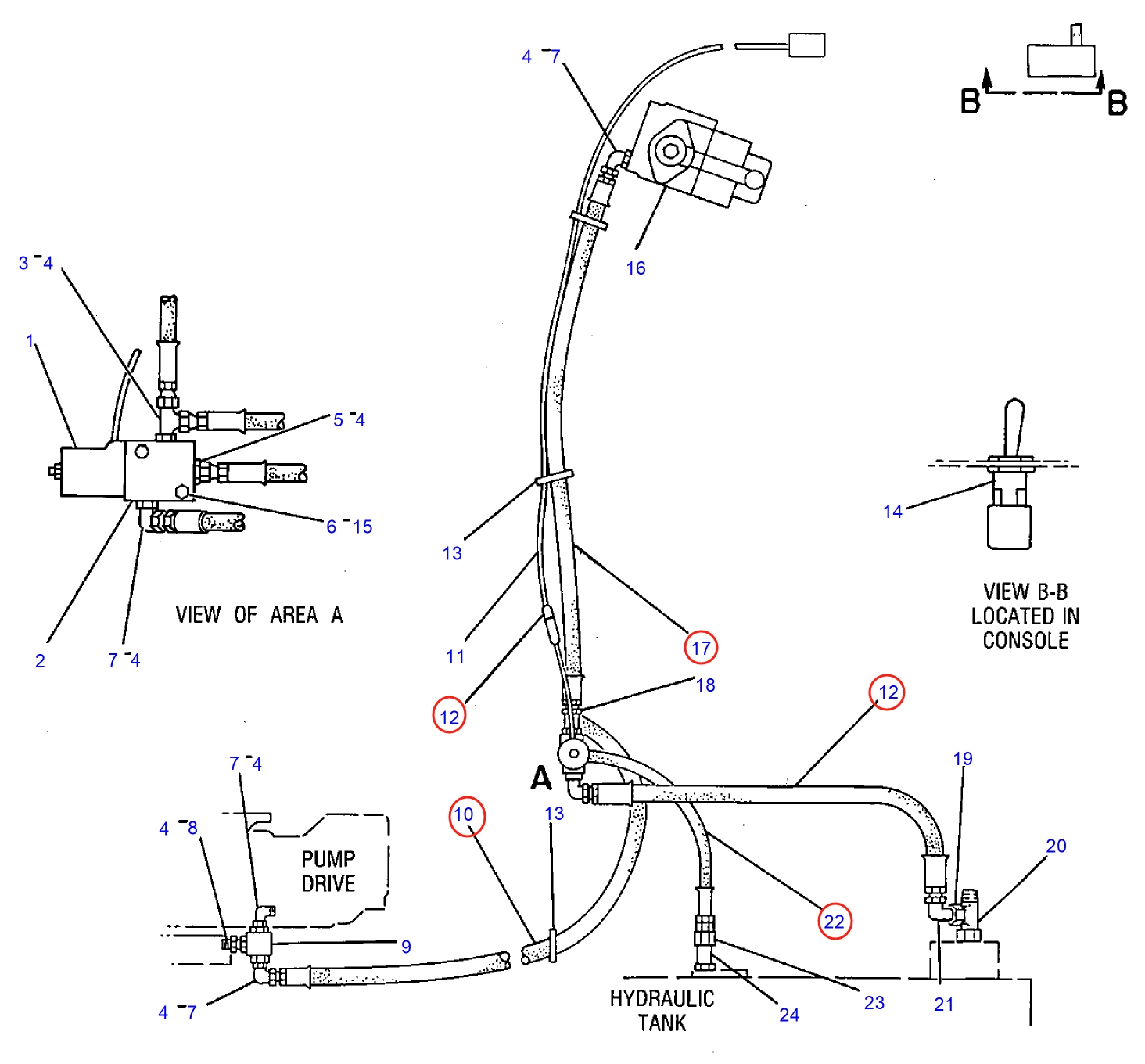

Locate Pipe No. 22 in the diagram, then confirm part number 3V-1330 before removing the hose.

Caterpillar CAT®245D installation diagram showing hydraulic hose 3V-1330 at Pipe No. 22 — Caterpillar CAT®245DPart 3V-1330 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: 3V-1330
Diagram pipe number: 22
Installation route: 液压油箱~电磁阀(液压泵左前)
Hose specification: DN8;-5;15.7Mpa
Finished length: 686 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 73

3V-1330

Installation route: 液压油箱~过渡阀块(液压泵下)

Length: 686 mm
Specification: DN8;-5;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 12

030-8769

Installation route: 液压油箱~电磁阀(液压泵左前)

Length: 813 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
