Individual hose record
4622750 Hose Repair Specifications
Excavator · Hitachi · ZX290LC-5G · Boom Assembly
Finished length750 mm
Locate this hose

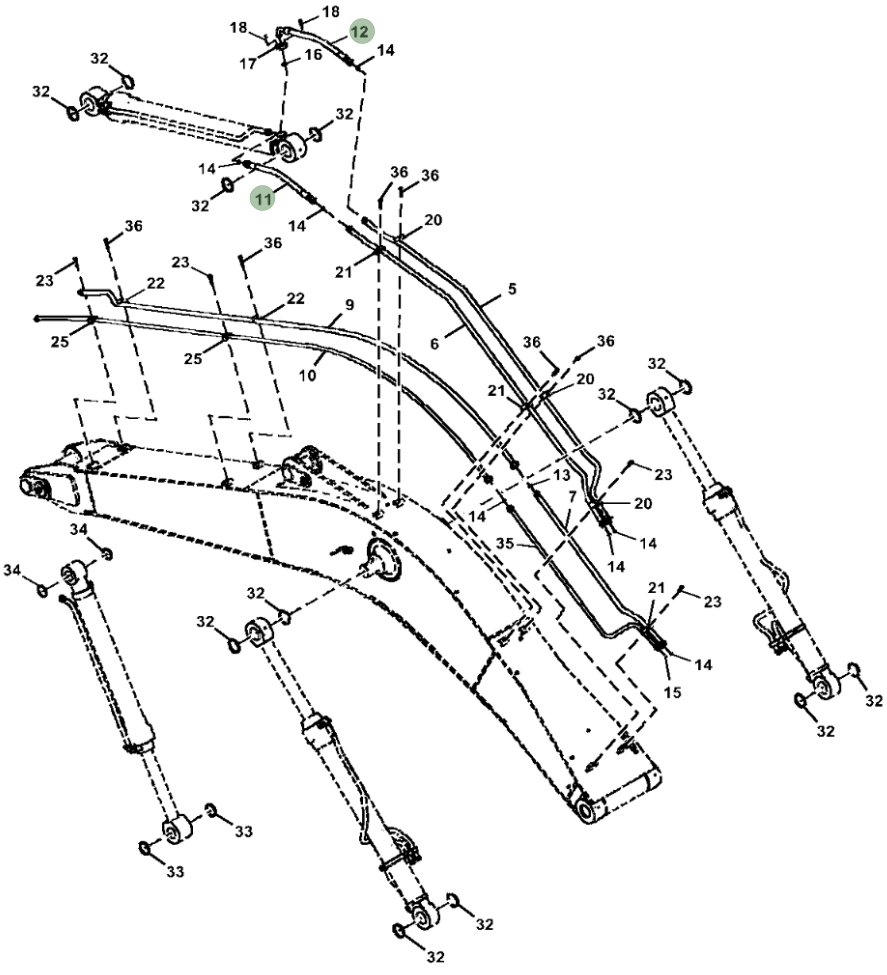

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4622750 before removing the hose.
Repair specifications
- Part number
- 4622750
- Diagram pipe number
- 11
- Installation route
- Arm cylinder — leftOriginal Chinese: 小臂油缸左
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 750 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 900 mm
- Specification
- DN25;4SH-16;38.8MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Diagram Pipe No. 11
4614162
Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3
- Length
- 850 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,500 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 750 mm
- Specification
- DN25;4SH-16;38.8MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Length
- 850 mm
- Specification
- DN19;4SH-12;42MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
