Hose repair record

F672689 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1470G Wheeled Harvester

Repair dataOpen with a pass

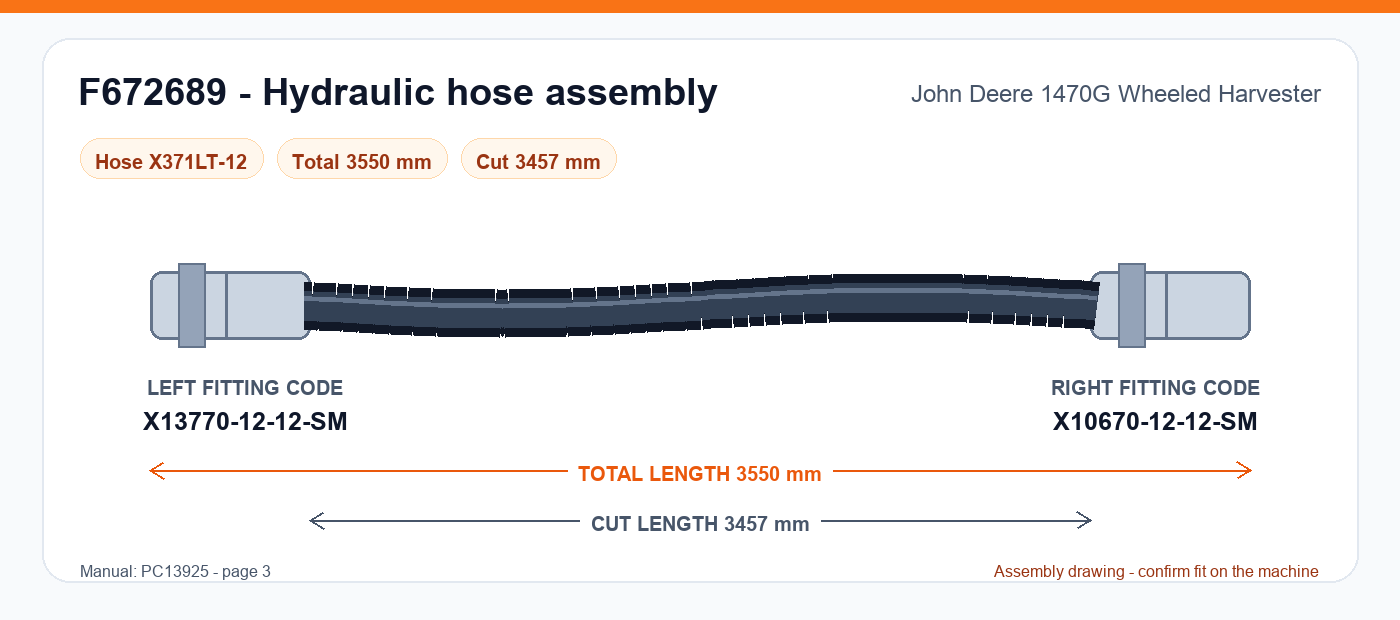

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1470G Wheeled Harvester
Part number: F672689
Hose type: X371LT-12
Total length: 3,550 mm
Cut length: 3,457 mm
Left-end hydraulic fitting code: X13770-12-12-SMLook up this code
Right-end hydraulic fitting code: X10670-12-12-SMJIC 37° female swivel straight · 1-1/16-12 UNF · 3/4 inch / DN20 hoseSee fitting details
Manual reference: PC13925, page 3

Identify this hose

Part number: F672689
Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey
