7V-7377 Hose Repair Specifications

Excavator · Caterpillar · CAT®231D · Attachments – Lock Valve

Finished length402 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 7V-7377 before removing the hose.

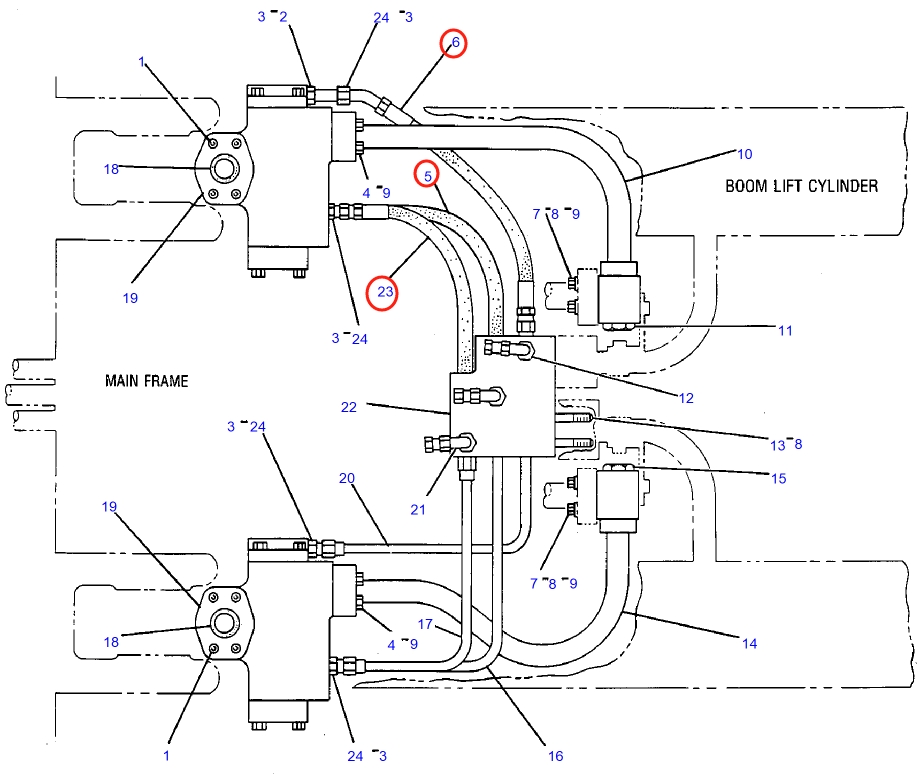

Caterpillar CAT®231D installation diagram showing hydraulic hose 7V-7377 at Pipe No. 5 — Caterpillar CAT®231DPart 7V-7377 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 7V-7377
Diagram pipe number: 5
Installation route: 左大臂油缸锁止阀~过渡阀块(大臂油缸)
Hose specification: DN10;2SN-6;33Mpa
Finished length: 402 mm
Working pressure: 33 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 23

7V-7376

Installation route: 左大臂油缸锁止阀~过渡阀块(大臂油缸)

Length: 411 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
