- Length
- 2,950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
KHJ2050 Hose Repair Specifications
Excavator · Case · CX800B · Grease Lines
Finished length1,000 mm
Locate this hose

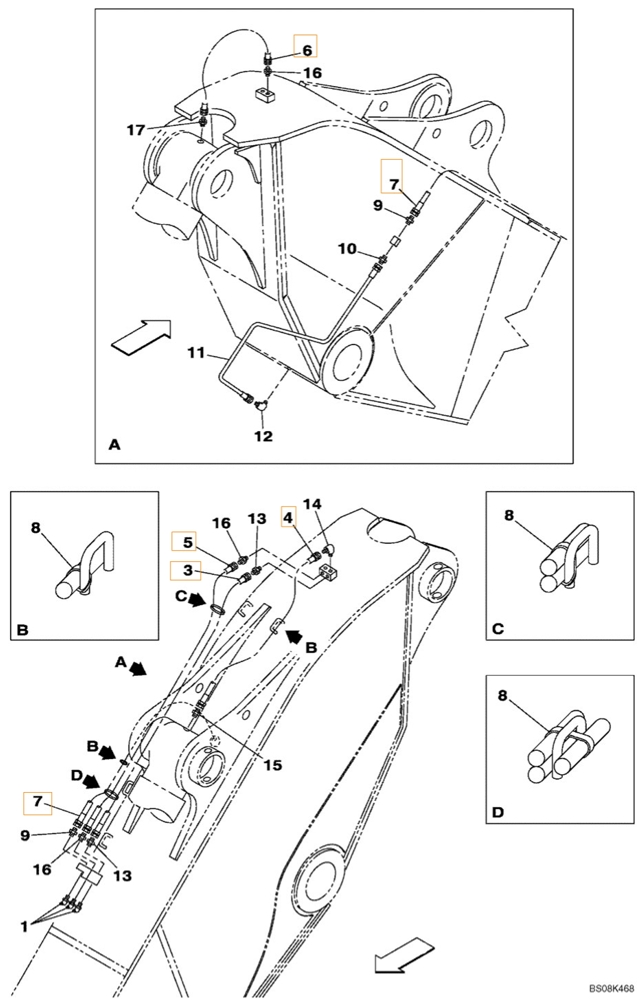

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number KHJ2050 before removing the hose.
Repair specifications
- Part number
- KHJ2050
- Diagram pipe number
- 7
- Installation route
- 小臂销黄油管
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,000 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
