Individual hose record
8U-7090 Hose Repair Specifications
Excavator · Caterpillar · CAT®212B · Attachments
Finished length1,397 mm
Locate this hose

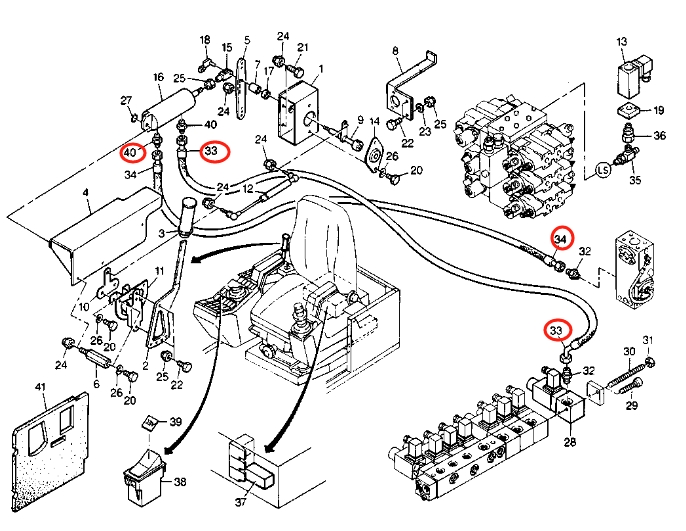

Installation diagram — Pipe No. 34
Locate Pipe No. 34 in the diagram, then confirm part number 8U-7090 before removing the hose.
Repair specifications
- Part number
- 8U-7090
- Diagram pipe number
- 34
- Installation route
- 过渡阀块~油缸总成
- Hose specification
- DN8;-5;17.5Mpa
- Finished length
- 1,397 mm
- Working pressure
- 17.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
