Individual hose record

DS2093028 Hose Preview

Excavator · Doosan · DX140LCR · Attachments – Breaker

Finished length650 mm

Repair specifications

Part number
DS2093028
Diagram pipe number
10
Installation route
Solenoid valve port HO → connector plate (under boom)Original Chinese: 电磁阀HO口~接线板(大臂下)
Hose specification
DN6;1SN-04;22.5MPa
Finished length
650 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity
1

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

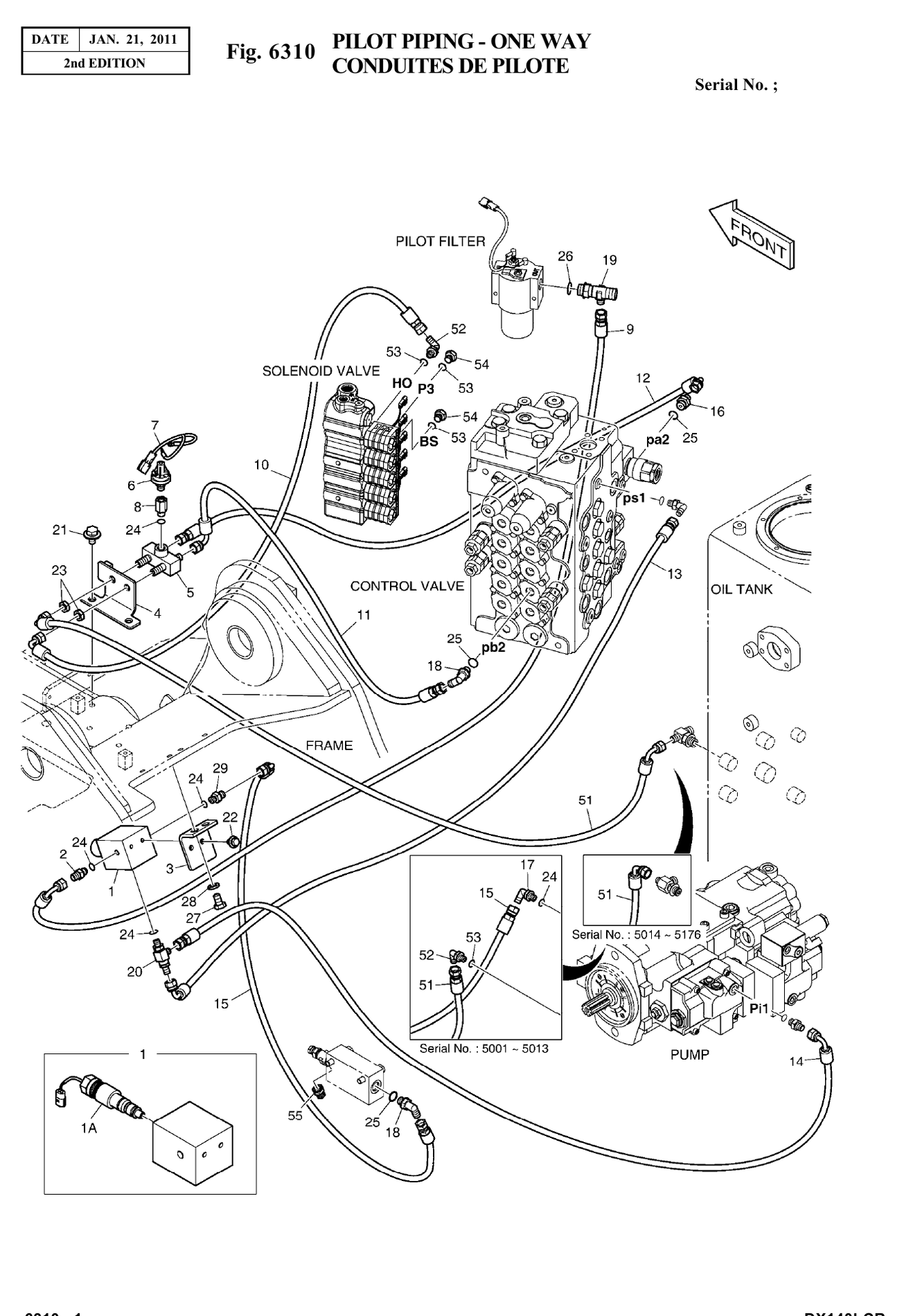

Installation diagram
Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 562 · Printed page 6310-1 · Fig. 6310View full-size

For reference only. Confirm the actual hose before fabrication.
