Individual hose record
4I-1419 Hose Repair Specifications
Excavator · Caterpillar · CAT®315B L · Control Valve
Finished length2,360 mm
Locate this hose

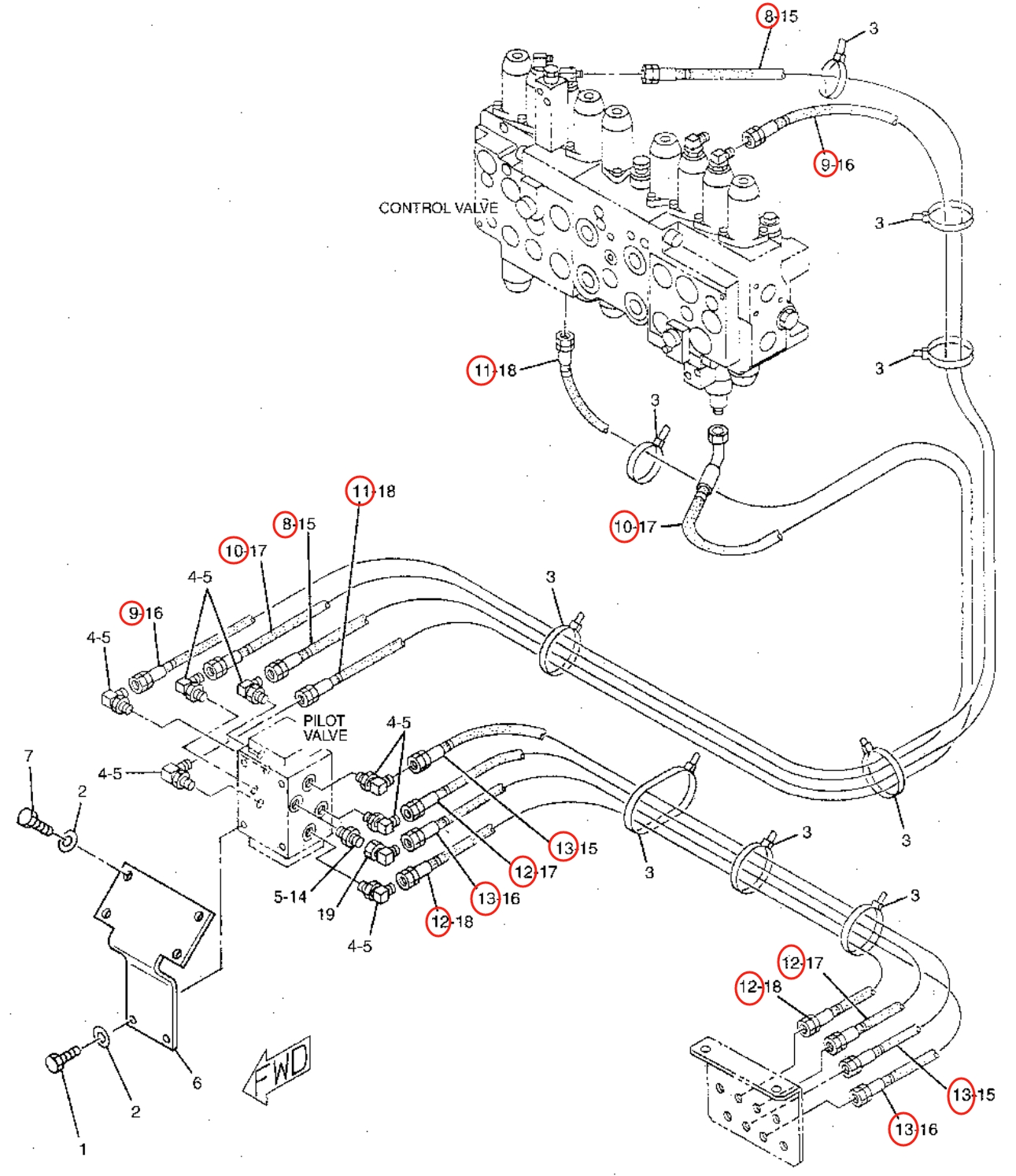

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4I-1419 before removing the hose.
Repair specifications
- Part number
- 4I-1419
- Diagram pipe number
- 8
- Installation route
- 分配阀上右~模式转换阀
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 2,360 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
