Individual hose record
294-3851 Hose Repair Specifications
Excavator · Caterpillar · CAT®316F · Grease Lines
Finished length1,340 mm
Locate this hose

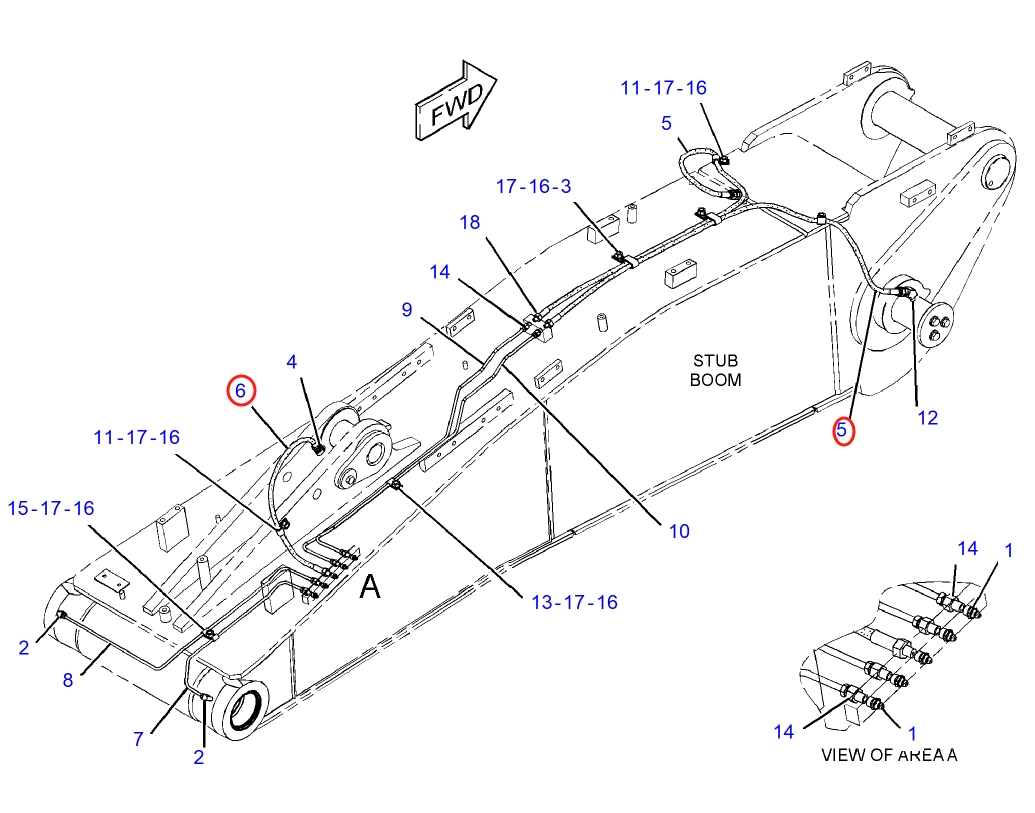

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 294-3851 before removing the hose.
Repair specifications
- Part number
- 294-3851
- Diagram pipe number
- 5
- Installation route
- 大臂油缸黄油管
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 1,340 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Quantity
- 2
Same system
Related Hoses
Diagram Pipe No. 14
120-7225
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 2,300 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
Diagram Pipe No. 7
123-5349
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 2,400 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 3,050 mm
- Specification
- DN6;1SN-4;10.4Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 1,900 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹30°内锥
- Length
- 650 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
For reference only. Confirm the actual hose before fabrication.
