Individual hose record

3V-8853 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Control Valve

Finished length795 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 3V-8853 before removing the hose.

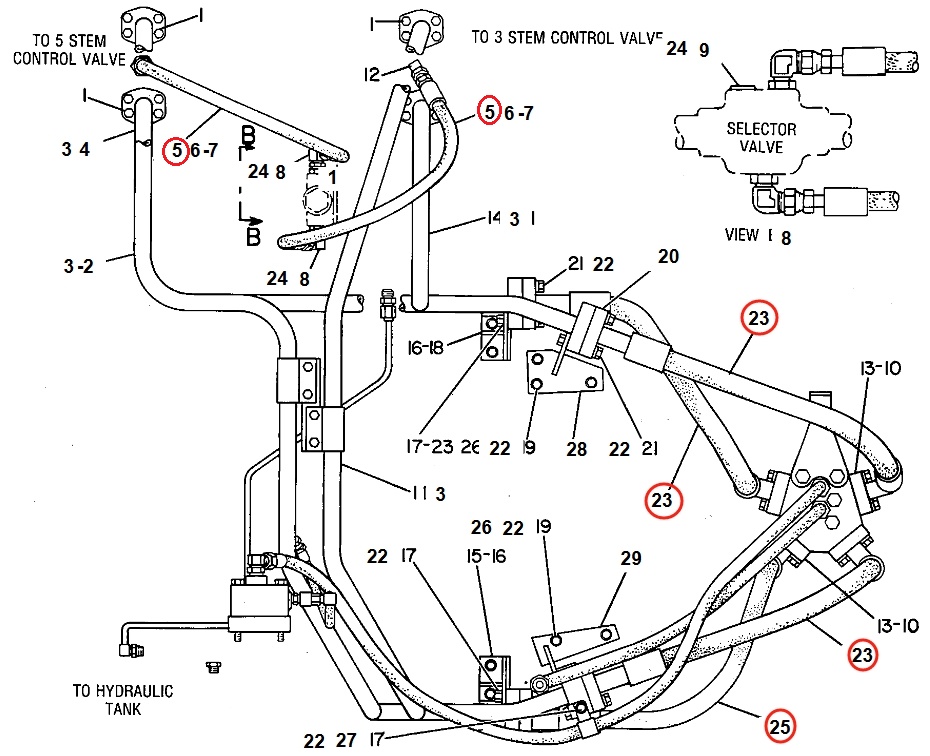

Caterpillar CAT®225B installation diagram showing hydraulic hose 3V-8853 at Pipe No. 5 — Caterpillar CAT®225BPart 3V-8853 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 3V-8853
Diagram pipe number: 5
Installation route: 分配阀~选择阀~
Hose specification: DN13;4SP-8;28Mpa
Finished length: 795 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 10

3V-8853

Installation route: 分配阀~选择阀

Length: 795 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

9N-5613

Installation route: 分配阀~液压油箱

Length: 1,100 mm
Specification: DN8;-5;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 62

3V-8853

Installation route: 分配阀上~控制阀

Length: 795 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
