Individual hose record
4671727 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Control Valve
Finished length520 mm
Locate this hose

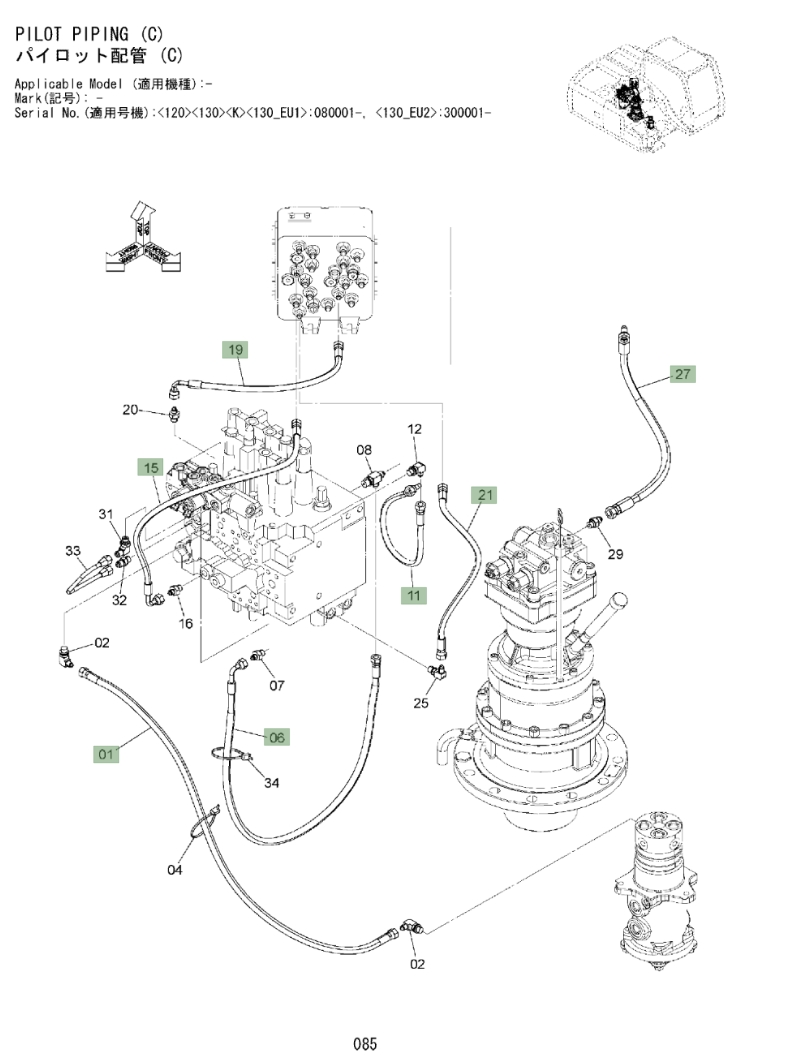

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4671727 before removing the hose.
Repair specifications
- Part number
- 4671727
- Diagram pipe number
- 11
- Installation route
- 分配阀右~分配阀右
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 520 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
