Individual hose record

390-2301 Hose Repair Specifications

Excavator · Caterpillar · CAT®314F CR · Hydraulic Tank

Finished length2,690 mm

Locate this hose

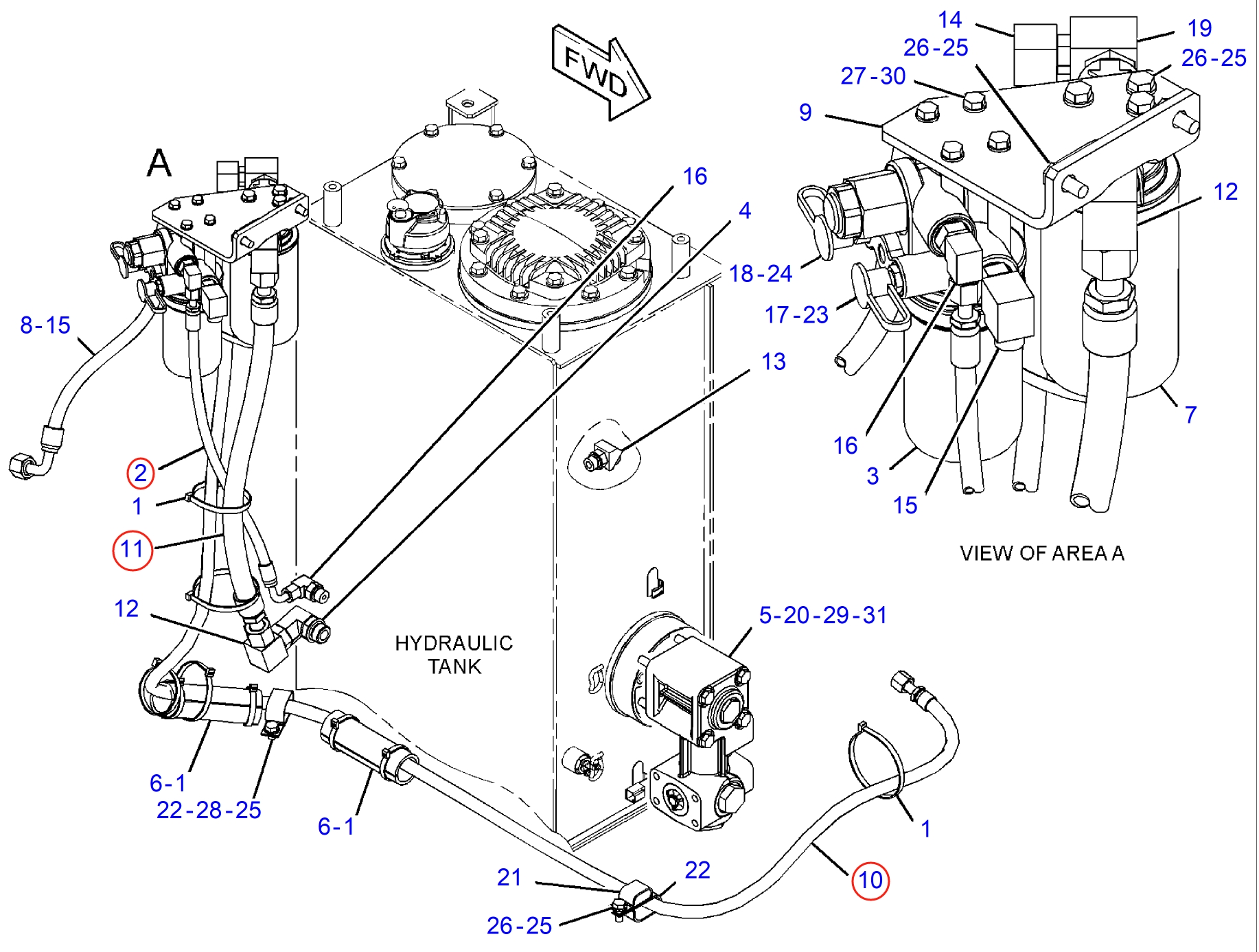

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 390-2301 before removing the hose.

Part number: 390-2301
Diagram pipe number: 10
Installation route: 液压油过滤器~
Hose specification: DN13;1SN-8;10.4Mpa
Finished length: 2,690 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 液压油箱~过渡接头(连接液压油箱)

Length: 540 mm
Specification: DN13;1SN-8;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: 液压油箱~液压油过滤器

Length: 600 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
