Individual hose record
167873A1 Hose Repair Specifications
Excavator · Case · CX210D NLC · Attachments – Quick Coupler
Finished length400 mm
Locate this hose

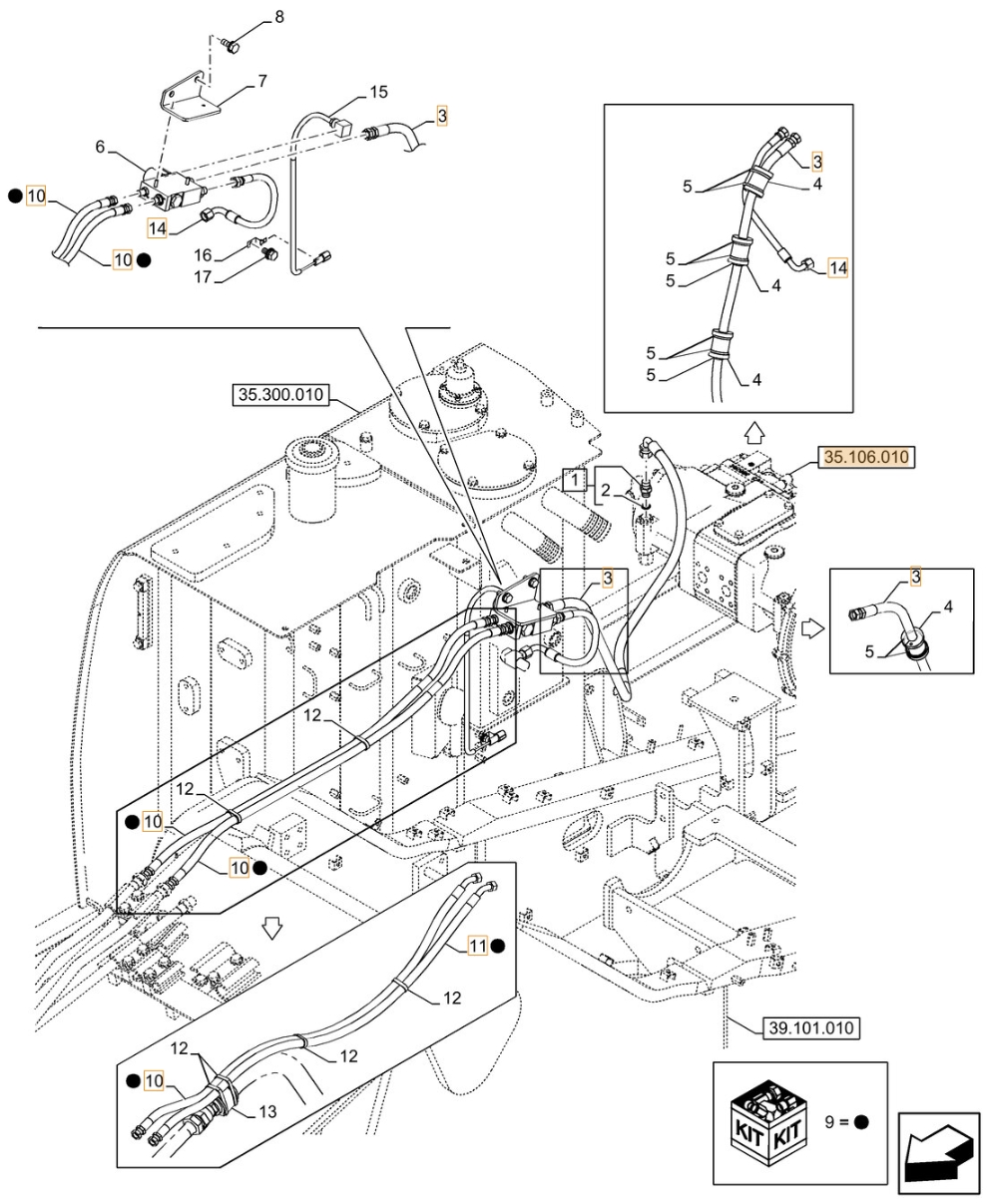

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 167873A1 before removing the hose.
Repair specifications
- Part number
- 167873A1
- Diagram pipe number
- 14
- Installation route
- 快速联轴阀~液压油箱
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 400 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
