Individual hose record

187-5915 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F L · Swivel Joint

Finished length2,400 mm

Locate this hose

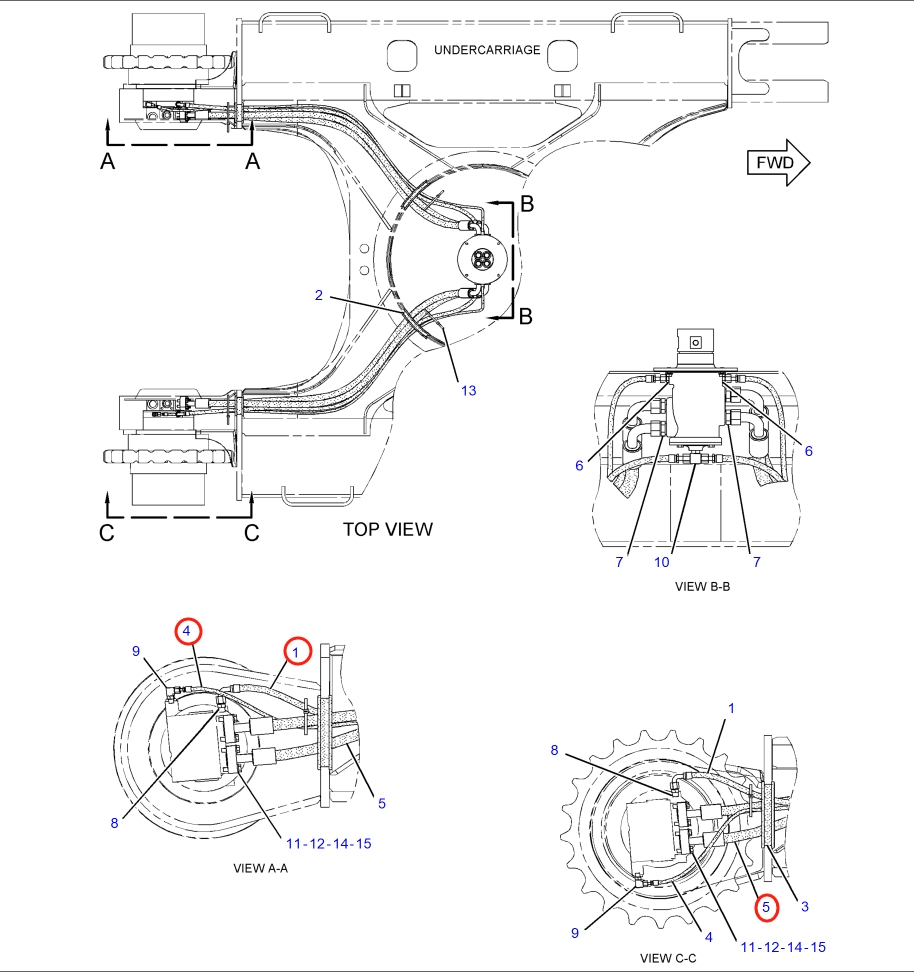

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 187-5915 before removing the hose.

Part number: 187-5915
Diagram pipe number: 4
Installation route: 回转接头~行走马达(规格1)
Hose specification: DN6;1SN-4;10.4Mpa
Finished length: 2,400 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 1

Installation route: 回转接头~行走马达(规格1)

Length: 1,950 mm
Specification: DN13;-8;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: 回转接头~行走马达(规格2)

Length: 1,860 mm
Specification: DN13;-8;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
