Individual hose record

157853A1 Hose Repair Specifications

Excavator · Case · CX160 · Hydraulic Pump

Finished length2,050 mm

Locate this hose

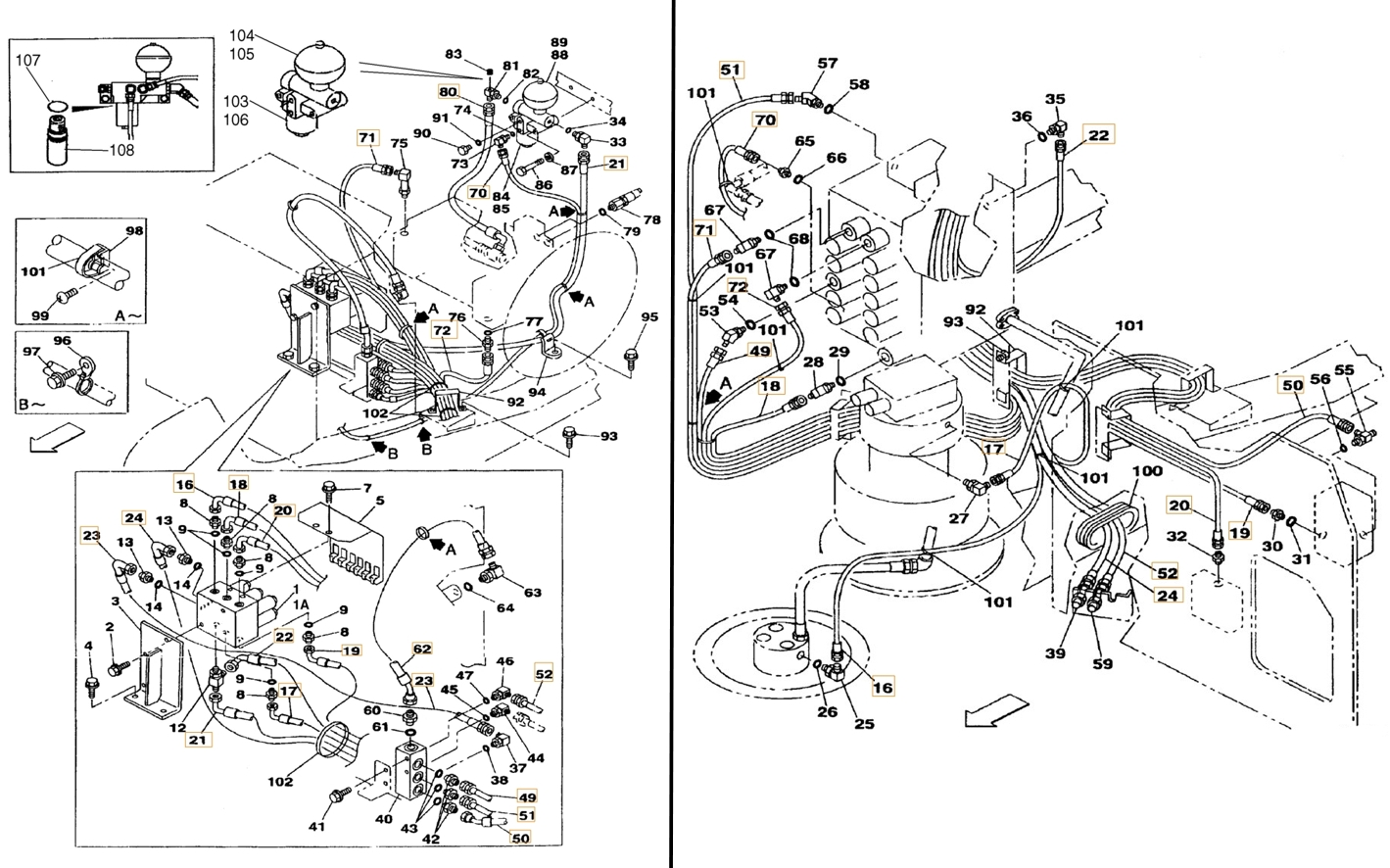

Installation diagram — Pipe No. 72

Locate Pipe No. 72 in the diagram, then confirm part number 157853A1 before removing the hose.

Part number: 157853A1
Diagram pipe number: 72
Installation route: 液压泵左~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,050 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 71

Installation route: 液压泵右~分配阀前

Length: 2,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 3

Installation route: 液压泵左~回油铁管(液压油箱)

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 72

Installation route: 液压泵左~分配阀前

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
