Individual hose record
364-4992 Hose Repair Specifications
Excavator · Caterpillar · CAT®318F · Grease Lines
Finished length650 mm
Locate this hose

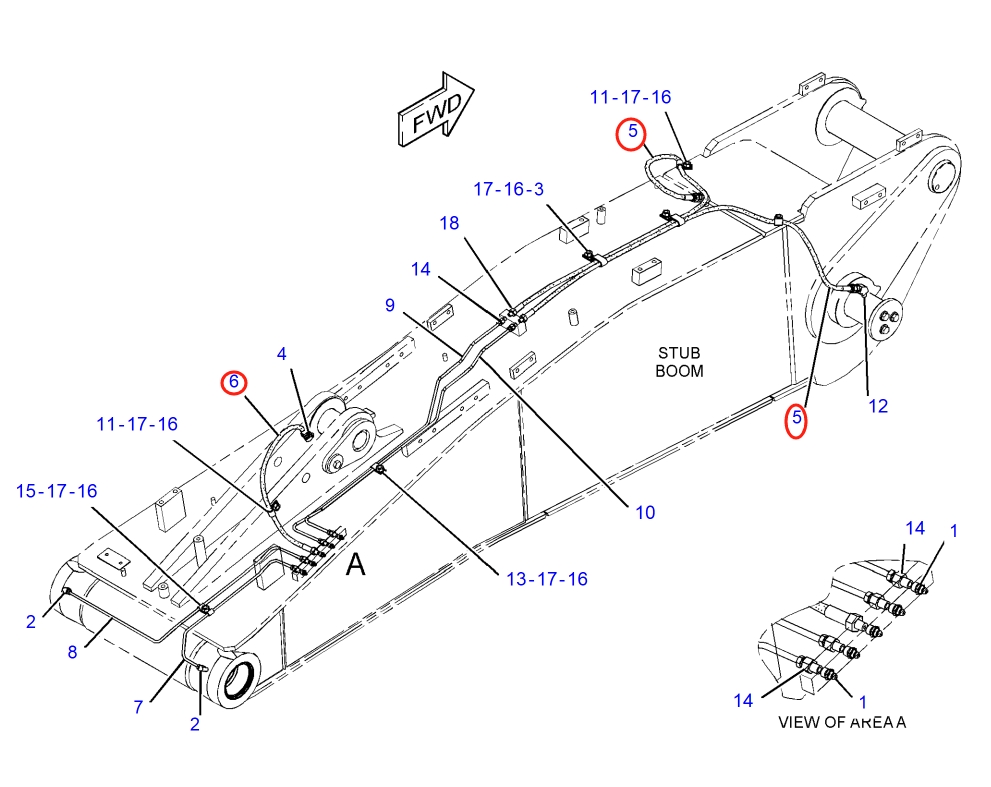

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 364-4992 before removing the hose.
Repair specifications
- Part number
- 364-4992
- Diagram pipe number
- 6
- Installation route
- 分节油缸黄油管
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 650 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Quantity
- 1
