Individual hose record
4I-1095 Hose Repair Specifications
Excavator · Caterpillar · CAT®311B · Swivel Joint
Finished length775 mm
Locate this hose

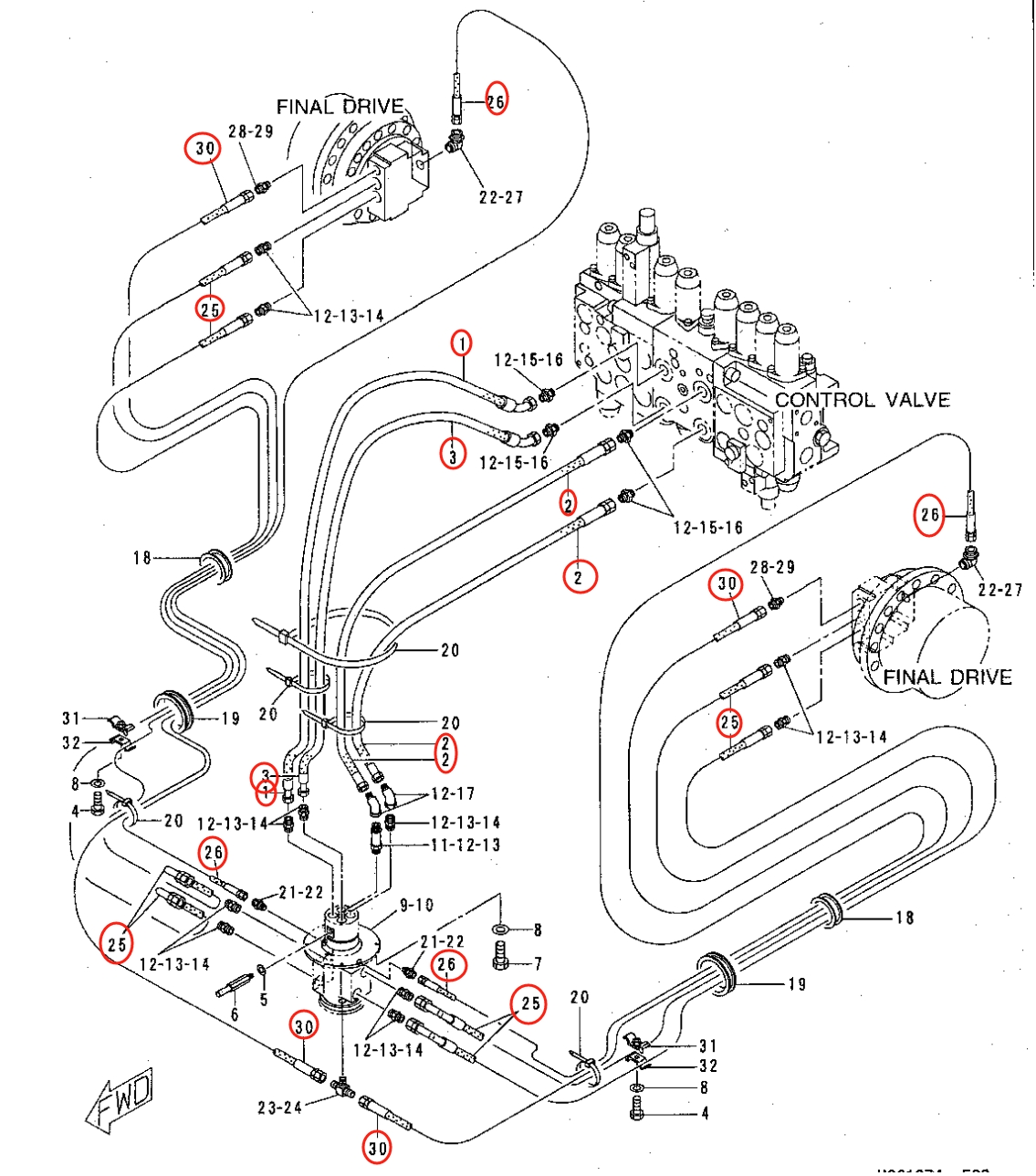

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4I-1095 before removing the hose.
Repair specifications
- Part number
- 4I-1095
- Diagram pipe number
- 2
- Installation route
- 回转接头~分配阀前
- Hose specification
- DN19;6SH-12;42Mpa
- Finished length
- 775 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
