Individual hose record

163805A1 Hose Repair Specifications

Excavator · Case · CX210 · Swivel Joint

Finished length900 mm

Locate this hose

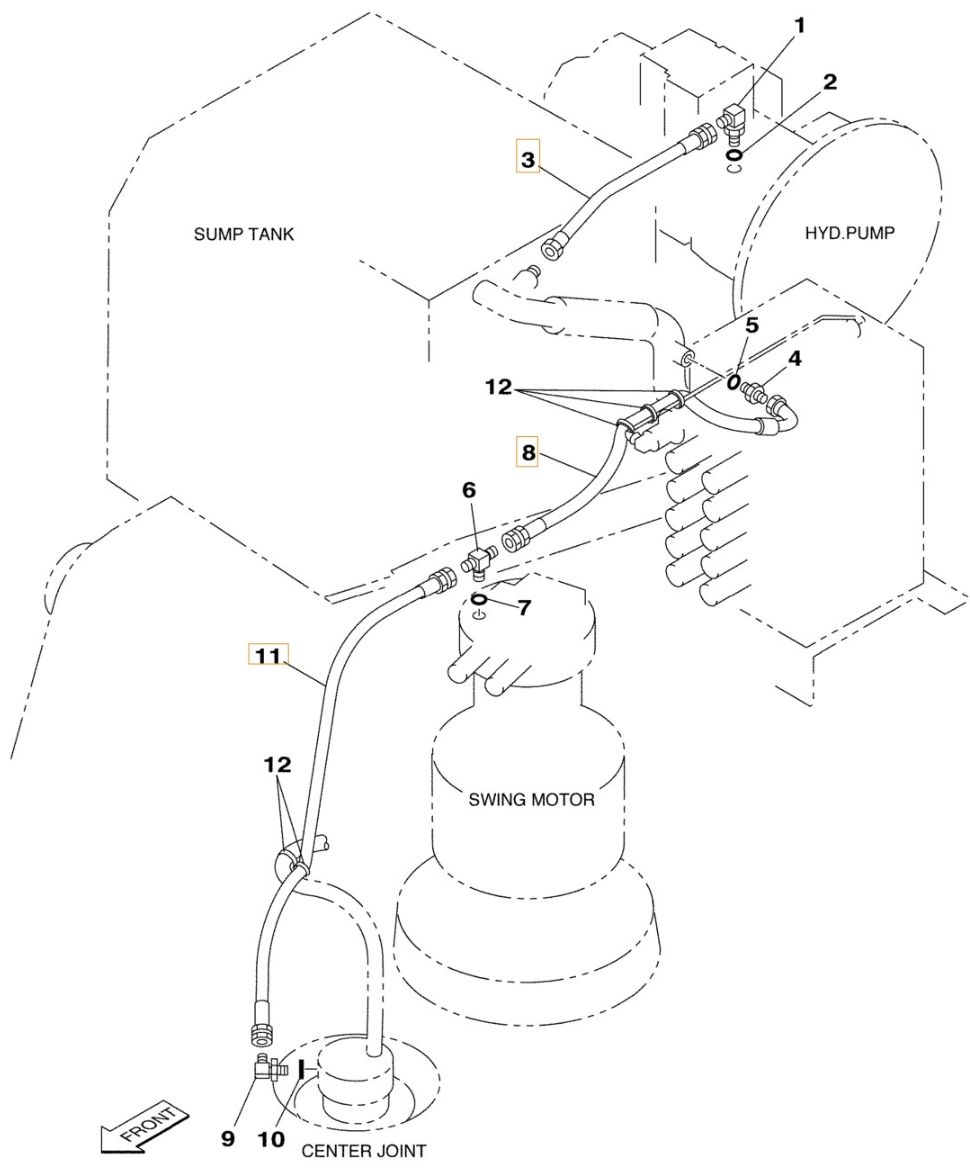

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 163805A1 before removing the hose.

Case CX210 installation diagram showing hydraulic hose 163805A1 at Pipe No. 11 — Case CX210Part 163805A1 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 163805A1
Diagram pipe number: 11
Installation route: 回转接头~回转马达(回油)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 900 mm
Working pressure: 27.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 12

167352A1

Installation route: 回转接头~电磁阀

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

152270A1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 12

152435A1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,150 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 3

MMA1005

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,000 mm
Specification: DN19;4SP-12;35MPa
Left fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 3

KRA1536

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,120 mm
Specification: DN19;4SP-12;35MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 12

KNJ2848

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,100 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
