8U-0663 Hose Repair Specifications

Excavator · Caterpillar · CAT®214B · Attachments – Lock Valve

Finished length1,090 mm

Locate this hose

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 8U-0663 before removing the hose.

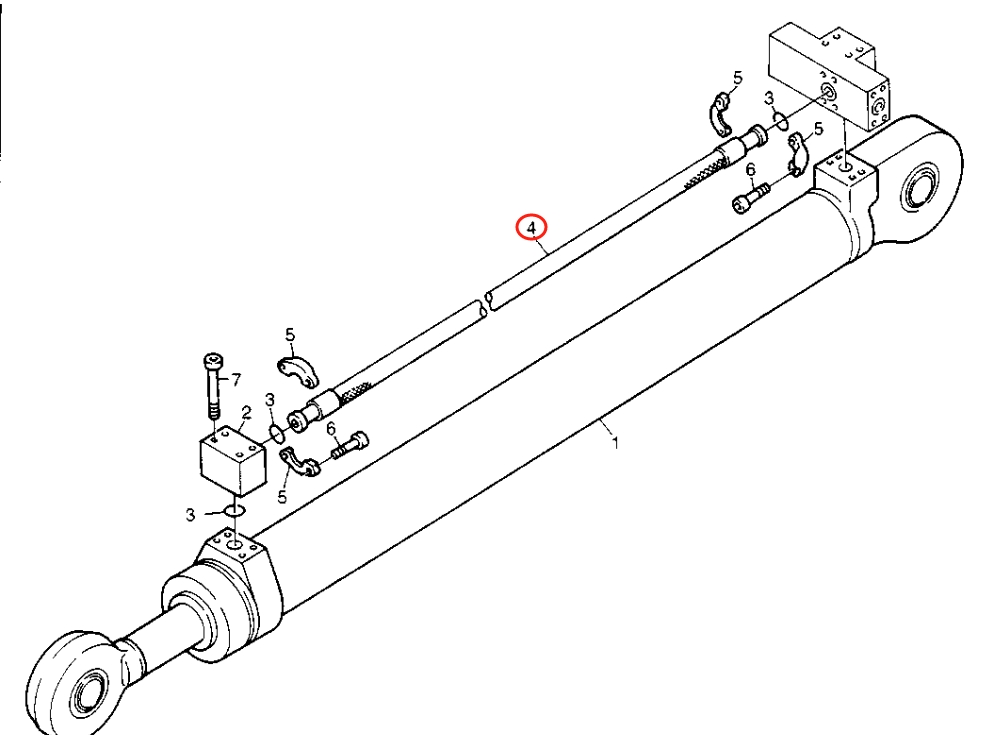

Caterpillar CAT®214B installation diagram showing hydraulic hose 8U-0663 at Pipe No. 4
Caterpillar CAT®214BPart 8U-0663 · Pipe No. 4Open full-size diagram

Repair specifications

Part number
8U-0663
Diagram pipe number
4
Installation route
小臂油缸锁止阀~过渡阀块(油缸锁止阀)
Hose specification
DN19;4SP-12;35Mpa
Finished length
1,090 mm
Working pressure
35 MPa
Left fitting
Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting
Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 11

8U-1354

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length
461 mm
Specification
DN6;2SN-4;40Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
