Individual hose record

8U-7521 Hose Repair Specifications

Excavator · Caterpillar · CAT®211B · Attachments

Finished length1,201 mm

Locate this hose

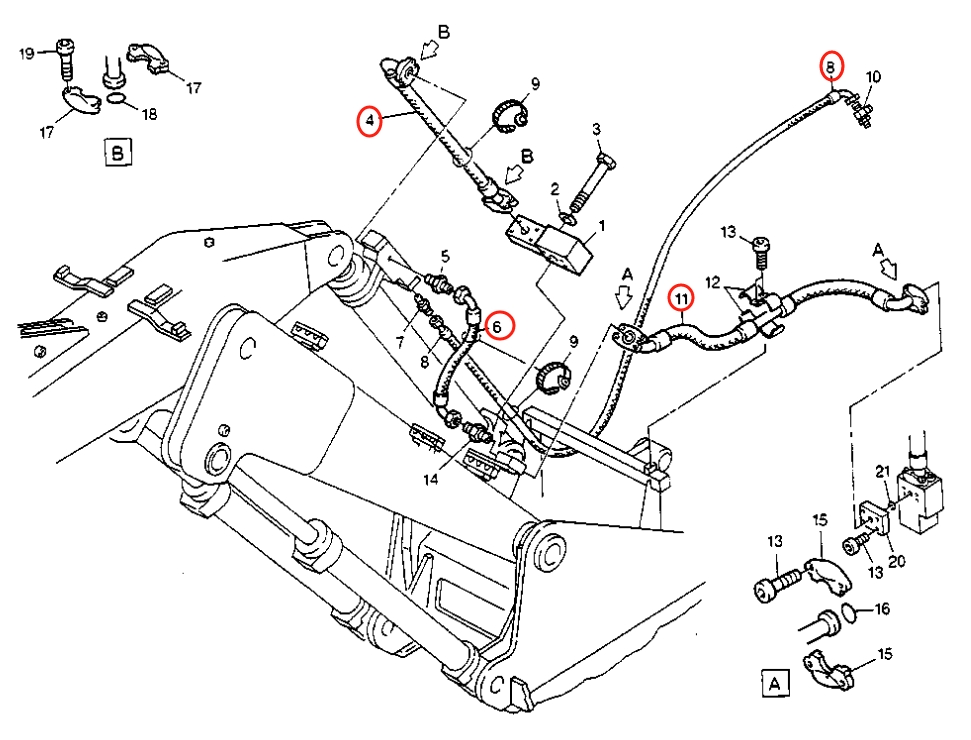

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 8U-7521 before removing the hose.

Part number: 8U-7521
Diagram pipe number: 11
Installation route: 接块(大臂上)~回油阀块
Hose specification: DN10;2SN-6;33Mpa
Finished length: 1,201 mm
Working pressure: 33 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 34

Installation route: 调速器油缸~回油阀块

Length: 1,397 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: 接块(大臂上)~回油阀块

Length: 1,201 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 15

Installation route: 大臂铁管~阀块

Length: 985 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
