KRJ5760 Hose Repair Specifications

Excavator · Case · CX300B · Boom Assembly

Finished length790 mm

Locate this hose

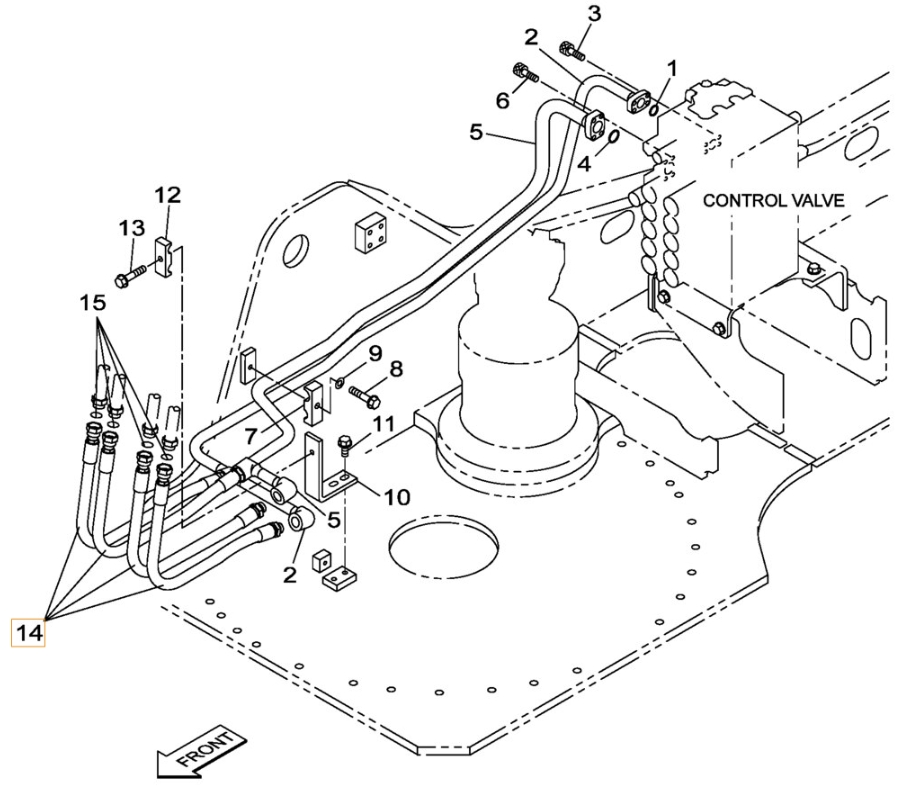

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number KRJ5760 before removing the hose.

Part number: KRJ5760
Diagram pipe number: 14
Installation route: 大臂油缸
Hose specification: DN19;4SP-12;35MPa
Finished length: 790 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 18

Installation route: 大臂左2

Length: 1,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 19

Installation route: 大臂左1

Length: 1,400 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
