Individual hose record

4I-6003 Hose Repair Specifications

Excavator · Caterpillar · CAT®312D2 L · Solenoid Valve

Finished length2,650 mm

Locate this hose

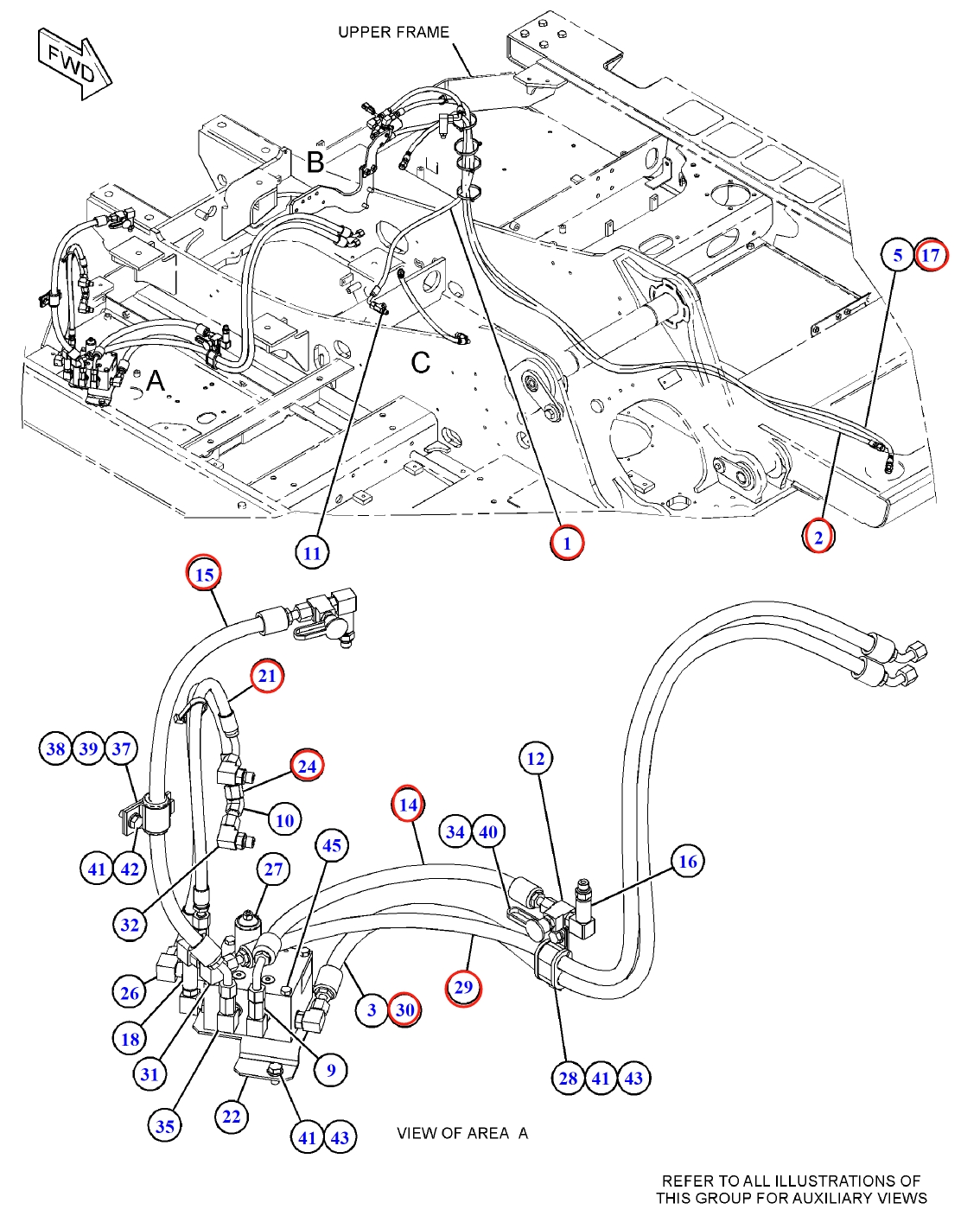

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4I-6003 before removing the hose.

Part number: 4I-6003
Diagram pipe number: 2
Installation route: 电磁阀(分配阀后)~驾驶室
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 2,650 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 17

Installation route: 电磁阀(分配阀后)~

Length: 2,850 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 21

Installation route: 电磁阀(液压泵右)~

Length: 1,800 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
