239-5713 Hose Repair Specifications

Excavator · Caterpillar · CAT®318C · Attachments – Quick Coupler

Finished length5,700 mm

Locate this hose

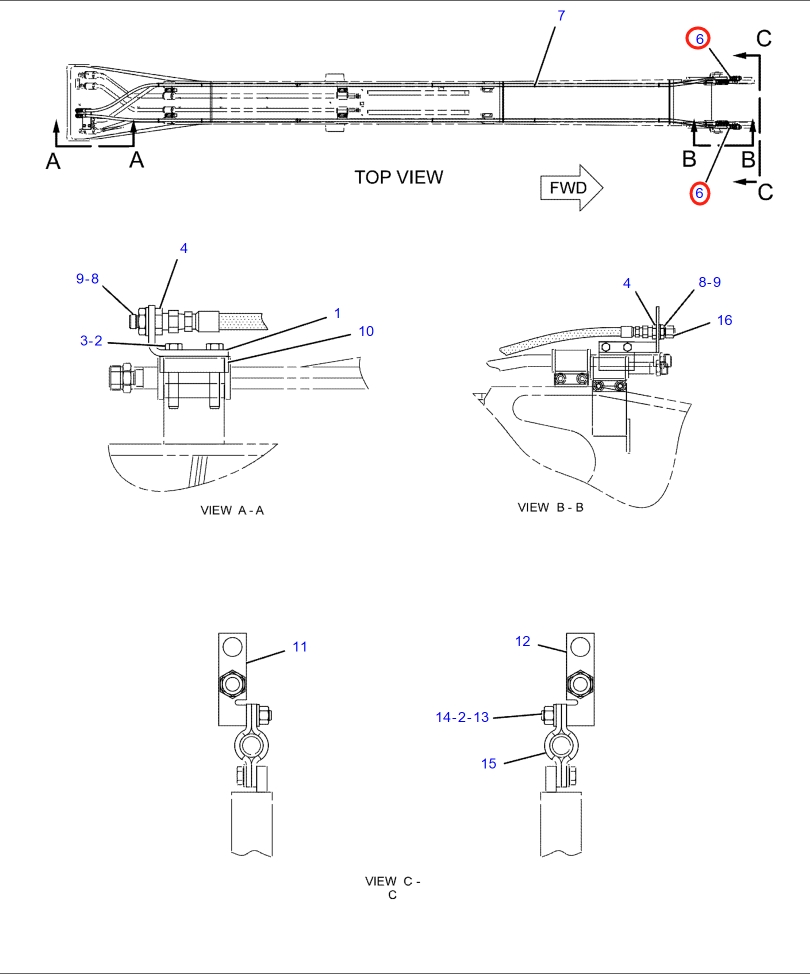

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 239-5713 before removing the hose.

Caterpillar CAT®318C installation diagram showing hydraulic hose 239-5713 at Pipe No. 6 — **Caterpillar CAT®318C**Part 239-5713 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 239-5713
Diagram pipe number: 6
Installation route: 小臂接头(快换)~快换装置
Hose specification: DN6;2SN-4;40Mpa
Finished length: 5,700 mm
Working pressure: 40 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 13

194-4303

Installation route: 大臂前段(快换)~大臂后段(快换)

Length: 1,435 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 14

173-3789

Installation route: 小臂(快换)~小臂接头(快换)

Length: 2,250 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

188-6098

Installation route: 大臂前段快换管

Length: 2,160 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

153-0283

Installation route: 大臂(快换)~小臂(快换)

Length: 5,800 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

199-1914

Installation route: 控制阀(快换)~控制阀(快换)

Length: 370 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

211-7050

Installation route: 小臂(快换)~小臂接头(快换)

Length: 1,380 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

211-7046

Installation route: 小臂(快换)~小臂接头(快换)

Length: 700 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

211-7042

Installation route: 小臂(快换)~小臂接头(快换)

Length: 1,000 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
