Individual hose record
8U-6521 Hose Repair Specifications
Excavator · Caterpillar · CAT®212B · Control Valve
Finished length1,697 mm
Locate this hose

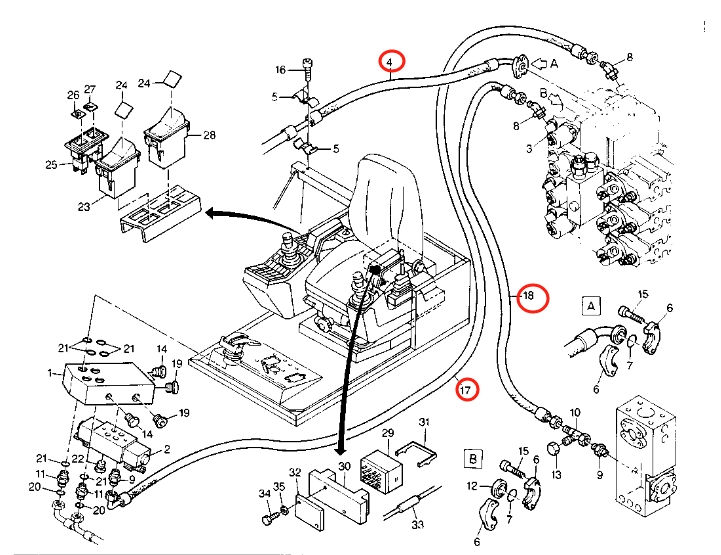

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 8U-6521 before removing the hose.
Repair specifications
- Part number
- 8U-6521
- Diagram pipe number
- 18
- Installation route
- 分配阀前~回油阀块
- Hose specification
- DN8;-5;17.5Mpa
- Finished length
- 1,697 mm
- Working pressure
- 17.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
