6W-7642 Hose Repair Specifications

Excavator · Caterpillar · CAT®215D · Attachments – Lock Valve

Finished length4,680 mm

Locate this hose

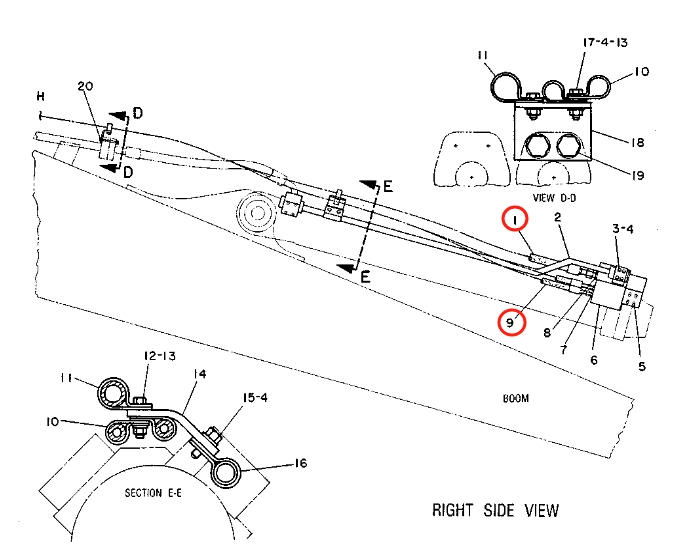

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 6W-7642 before removing the hose.

Caterpillar CAT®215D installation diagram showing hydraulic hose 6W-7642 at Pipe No. 9 — Caterpillar CAT®215DPart 6W-7642 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 6W-7642
Diagram pipe number: 9
Installation route: 小臂油缸锁止阀
Hose specification: DN10;4SP-6;28Mpa
Finished length: 4,680 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 30

7V-7377

Installation route: 大臂油缸锁止阀

Length: 402 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 1

6W-7641

Installation route: 小臂油缸锁止阀

Length: 4,680 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
