Individual hose record

087-4503 Hose Repair Specifications

Excavator · Caterpillar · CAT®313F L · Control Valve

Finished length850 mm

Locate this hose

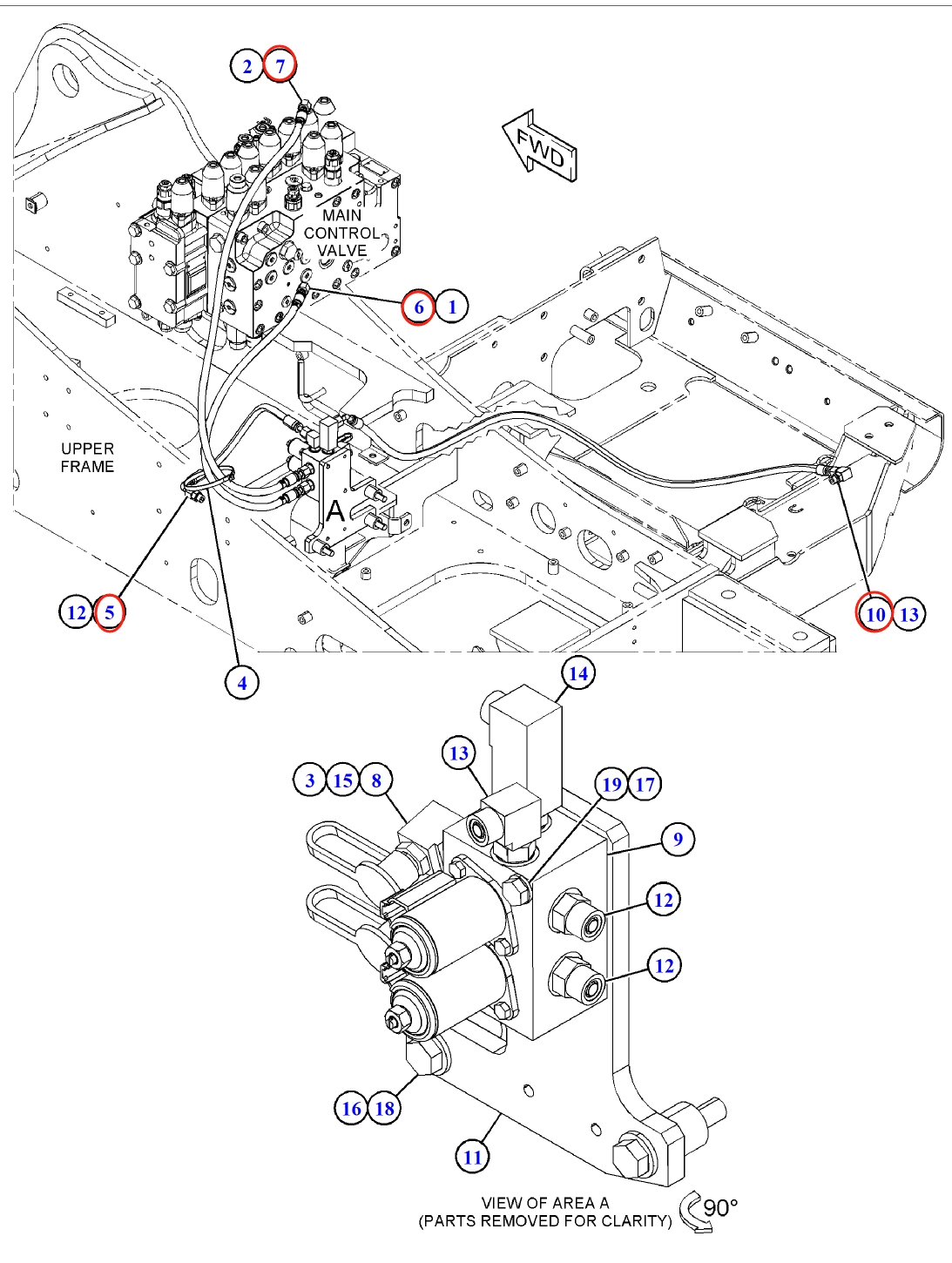

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 087-4503 before removing the hose.

Part number: 087-4503
Diagram pipe number: 6
Installation route: 分配阀下~电磁阀(分配阀后下)左
Hose specification: DN10;-6;10.3Mpa
Finished length: 850 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 7

Installation route: 分配阀上~电磁阀(分配阀后下)左~

Length: 1,250 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 分配阀上右~分配阀下右

Length: 1,200 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
