Individual hose record

2V-8299 Hose Repair Specifications

Excavator · Caterpillar · CAT®219 · Attachments – Breaker

Finished length1,130 mm

Locate this hose

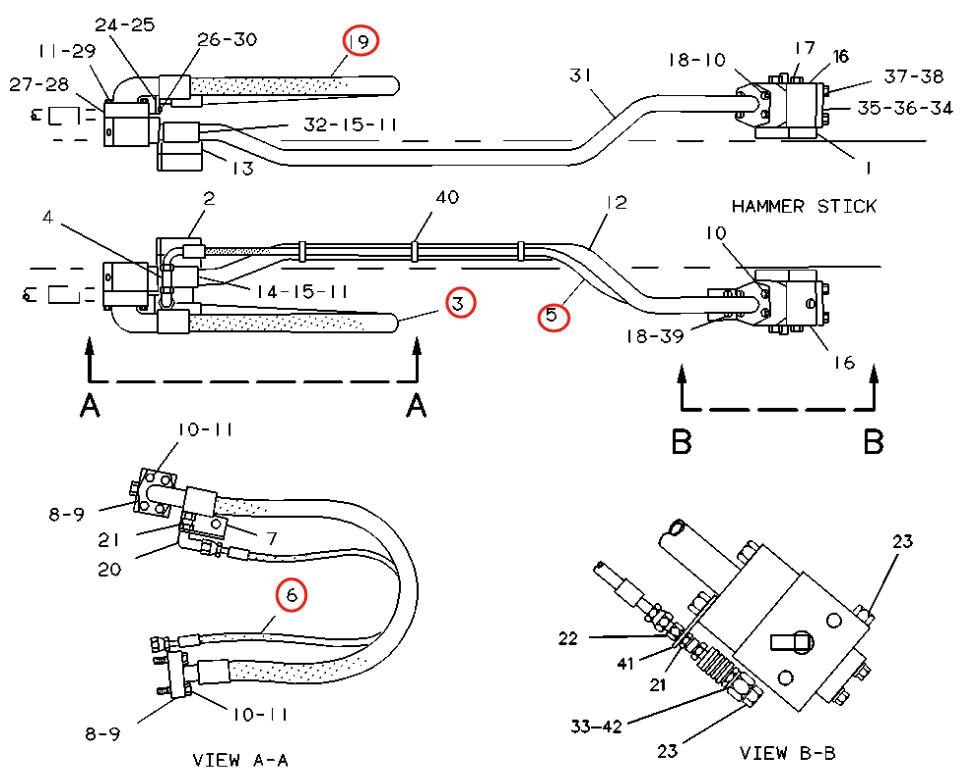

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 2V-8299 before removing the hose.

Caterpillar CAT®219 installation diagram showing hydraulic hose 2V-8299 at Pipe No. 6 — Caterpillar CAT®219Part 2V-8299 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 2V-8299
Diagram pipe number: 6
Installation route: 小臂破碎器截止阀
Hose specification: DN10;4SP-6;28Mpa
Finished length: 1,130 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
