Individual hose record

342-4067 Hose Repair Specifications

Excavator · Caterpillar · CAT®311F LRR · Swivel Joint

Finished length1,700 mm

Locate this hose

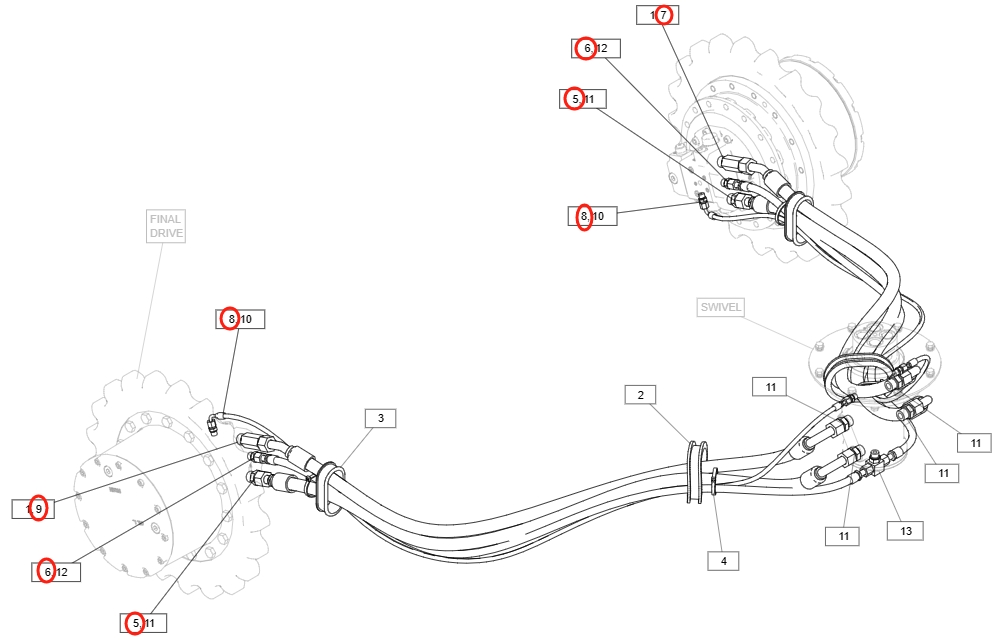

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 342-4067 before removing the hose.

Part number: 342-4067
Diagram pipe number: 6
Installation route: 回转接头~行走马达(规格2)
Hose specification: DN13;1SN-8;10.4Mpa
Finished length: 1,700 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 7

Installation route: 回转接头~行走马达(规格1)

Length: 1,800 mm
Specification: DN13;-8;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 回转接头~控制阀(回转马达左)

Length: 570 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
