Individual hose record
4322514 Hose Repair Specifications
Excavator · Hitachi · ZX800 · Attachments – Lock Valve
Finished length960 mm
Locate this hose

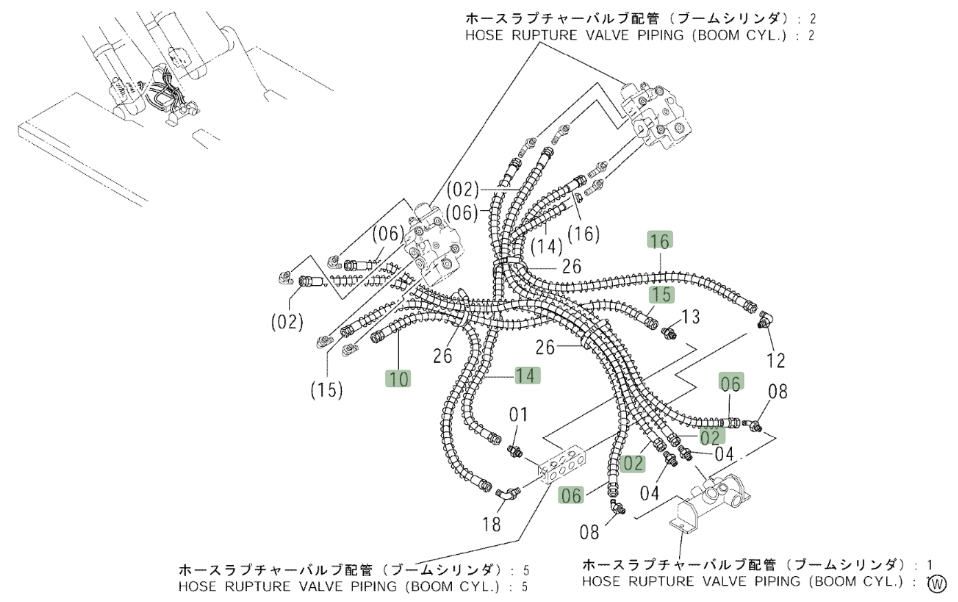

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4322514 before removing the hose.
Repair specifications
- Part number
- 4322514
- Diagram pipe number
- 6
- Installation route
- 大臂油缸锁止阀~过渡阀块(锁止阀)
- Hose specification
- DN10;1SN-06;7Mpa
- Finished length
- 960 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
