Individual hose record
2184-1096D8 Hose Preview
Excavator · Doosan · DX140LCR · Attachments – Lock Valve
Finished length610 mm
Repair specifications
- Part number
- 2184-1096D8
- Diagram pipe number
- 12
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 610 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
Manual diagrams

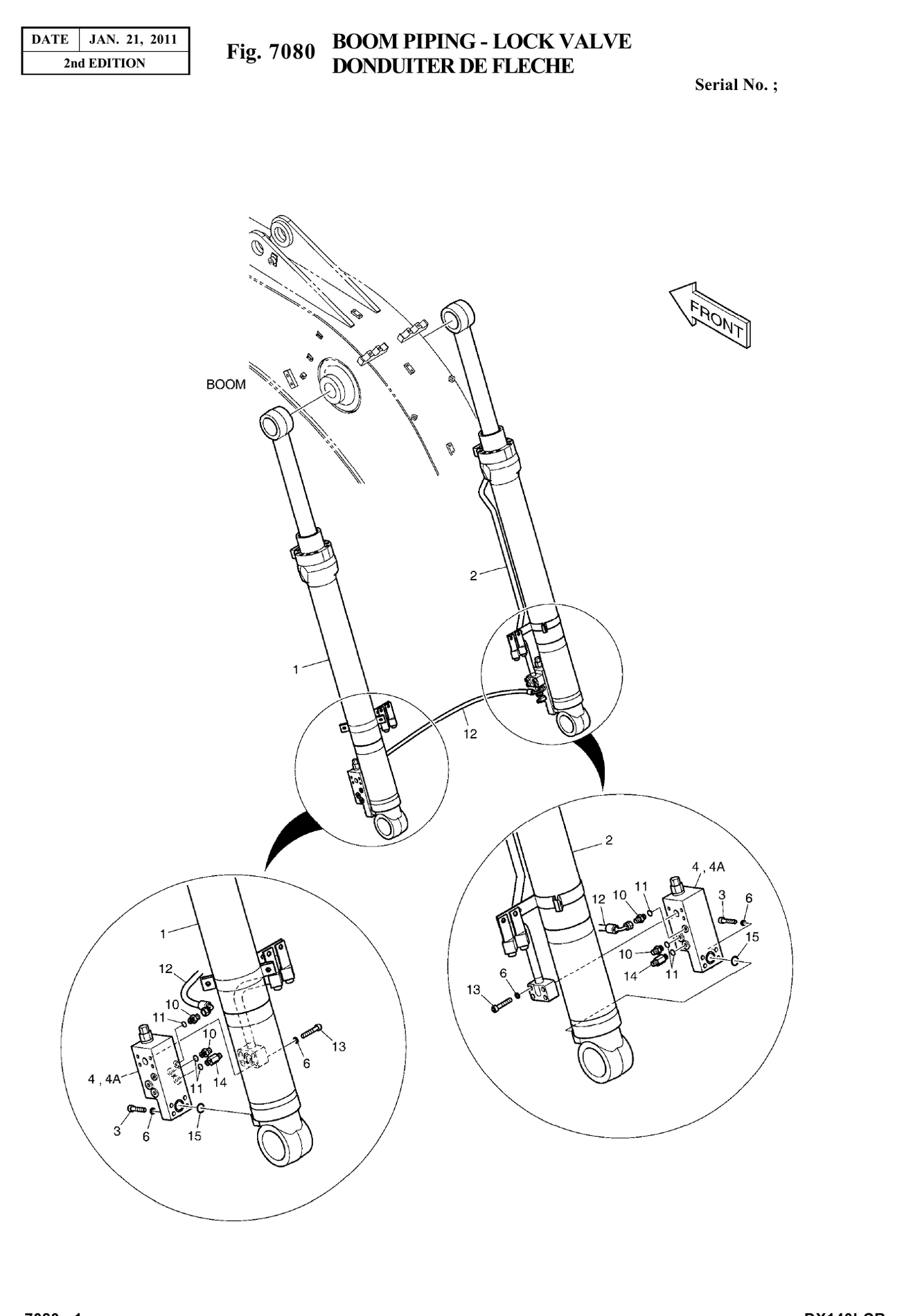

Installation and Exploded Views
A red marker identifies a reviewed hose location.
For reference only. Confirm the actual hose before fabrication.
