151-4617 Hose Repair Specifications

Excavator · Caterpillar · CAT®M312 · Swivel Joint

Finished length2,000 mm

Locate this hose

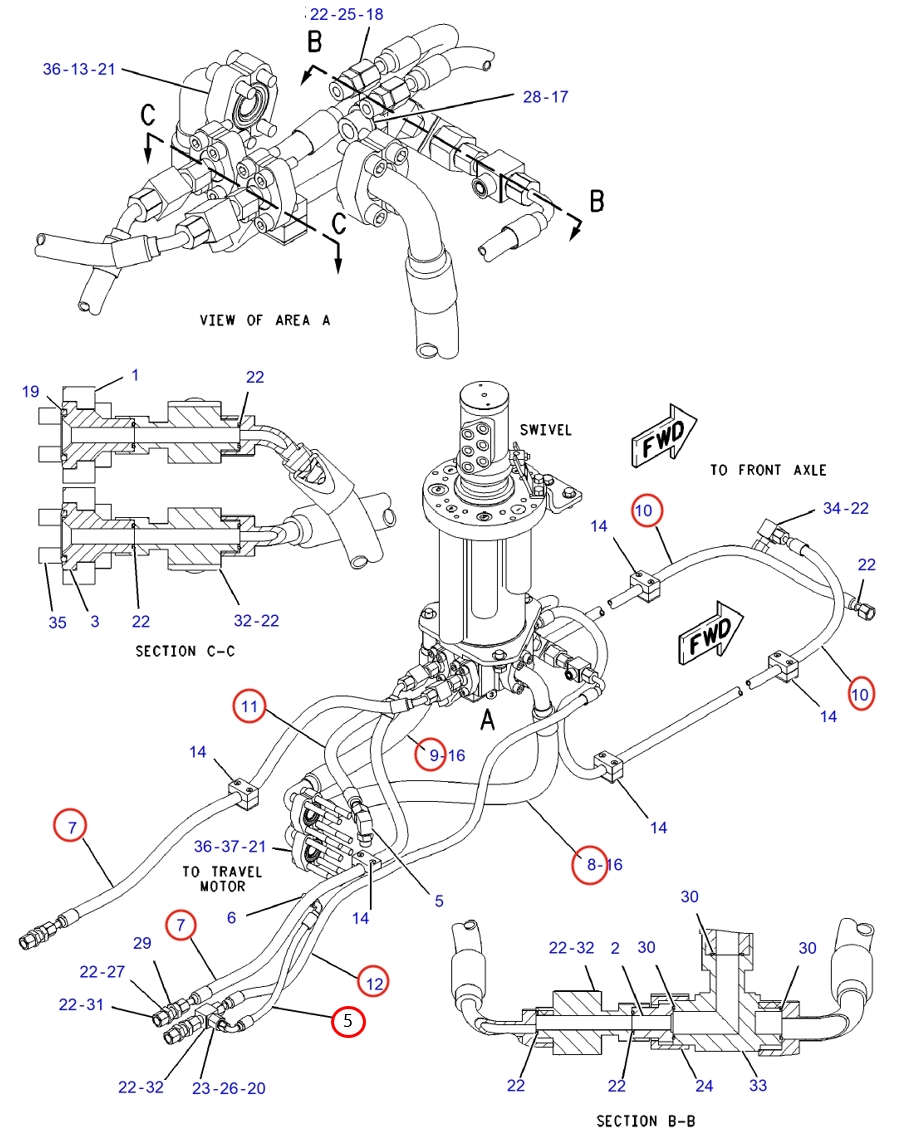

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 151-4617 before removing the hose.

Part number: 151-4617
Diagram pipe number: 10
Installation route: 回转接头~后桥
Hose specification: DN10;2SN-6;33Mpa
Finished length: 2,000 mm
Working pressure: 33 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 2

Installation route: 回转接头~液压油箱

Length: 1,070 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: 回转接头~分配阀前左

Length: 930 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

For reference only. Confirm the actual hose before fabrication.
