Individual hose record

KHJ2084 Hose Repair Specifications

Excavator · Case · CX75C SR · Control Lever

Finished length350 mm

Locate this hose

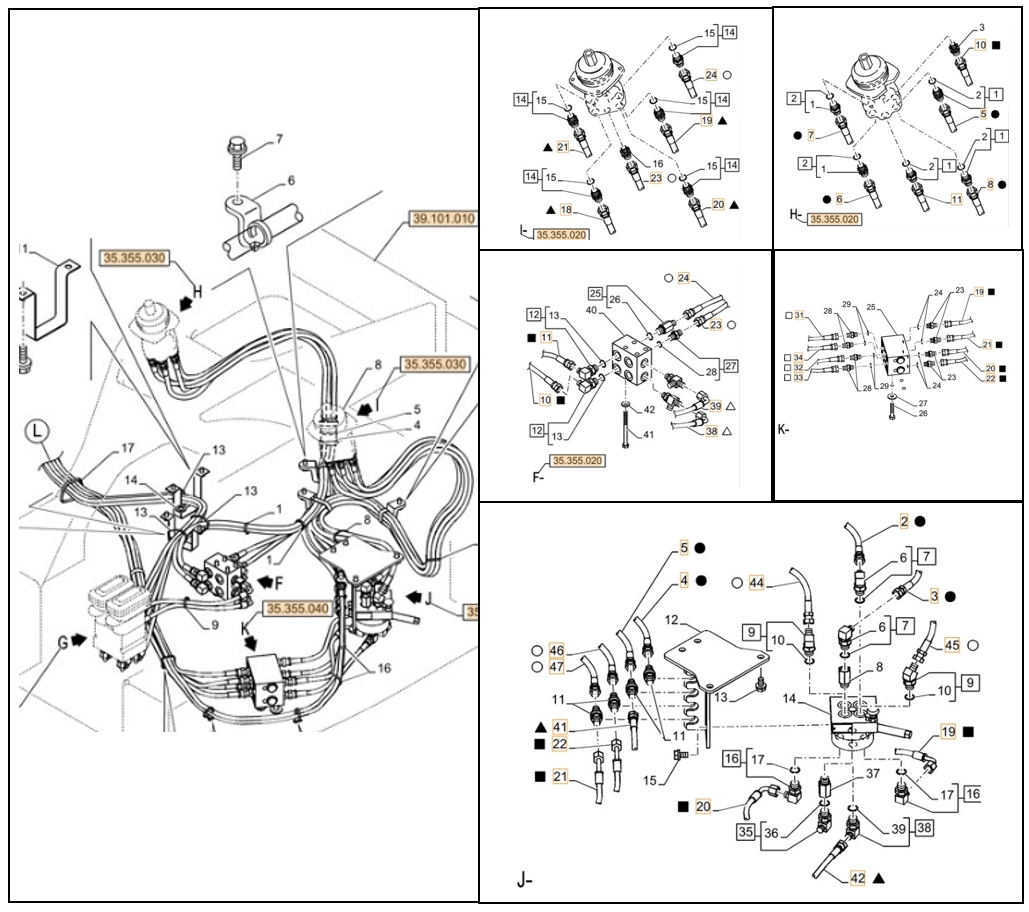

Installation diagram — Pipe No. 20

Locate Pipe No. 20 in the diagram, then confirm part number KHJ2084 before removing the hose.

Part number: KHJ2084
Diagram pipe number: 20
Installation route: 模式转换阀~缓冲阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 17

Installation route: 中转接头~缓冲阀

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 19

Installation route: 模式转换阀~缓冲阀

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. J41-I35

Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 18

Installation route: 中转接头~缓冲阀

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
