Individual hose record

4355420 Hose Repair Specifications

Excavator · Hitachi · EX230LC-5 · Solenoid Valve

Finished length2,650 mm

Locate this hose

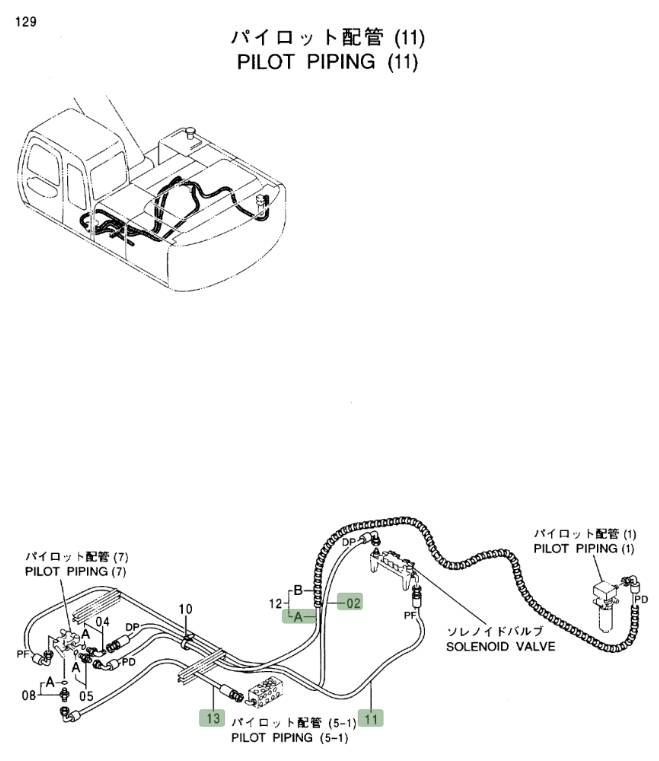

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4355420 before removing the hose.

Hitachi EX230LC-5 installation diagram showing hydraulic hose 4355420 at Pipe No. 2 — Hitachi EX230LC-5Part 4355420 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4355420
Diagram pipe number: 2
Installation route: 电磁阀~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,650 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 30

9155424

Installation route: 电磁阀~先导滤芯

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 30A

4376587

Installation route: 电磁阀~先导滤芯

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

4371504

Installation route: 电磁阀~进回油阀

Length: 2,900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
