Individual hose record
176-4743 Hose Repair Specifications
Excavator · Caterpillar · CAT®318D2 · Hydraulic Tank
Finished length450 mm
Locate this hose

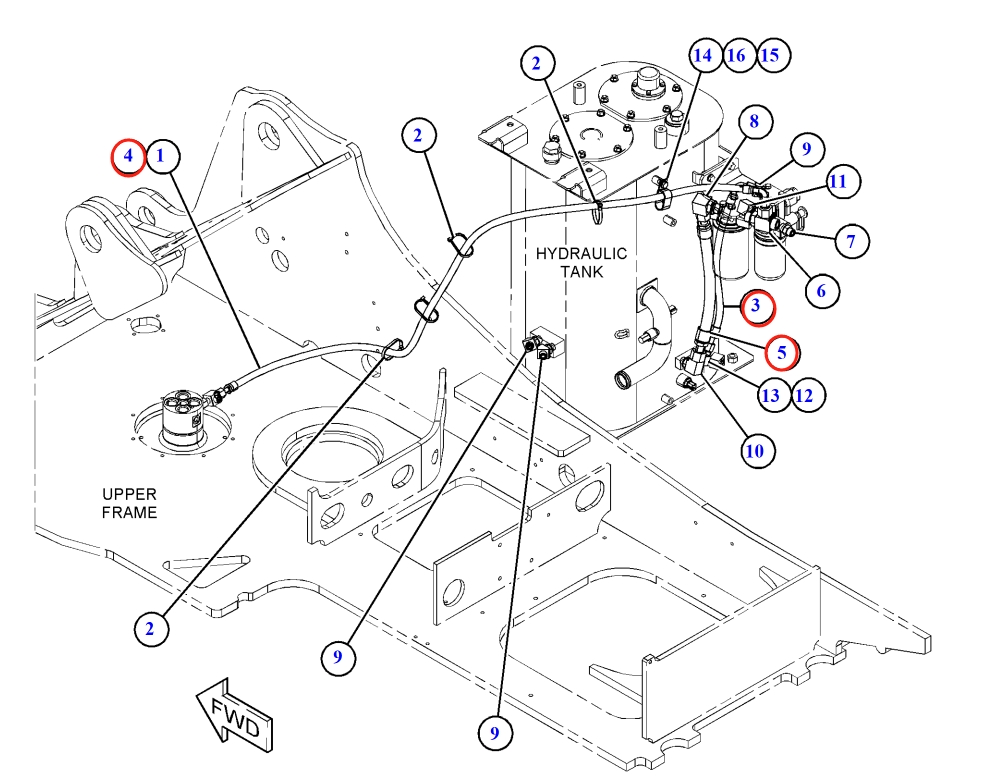

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 176-4743 before removing the hose.
Repair specifications
- Part number
- 176-4743
- Diagram pipe number
- 5
- Installation route
- 液压油箱~液压油过滤器
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 450 mm
- Working pressure
- 8.7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
