Individual hose record

315-0922 Hose Repair Specifications

Excavator · Caterpillar · CAT®314F CR · Grease Lines

Finished length1,800 mm

Locate this hose

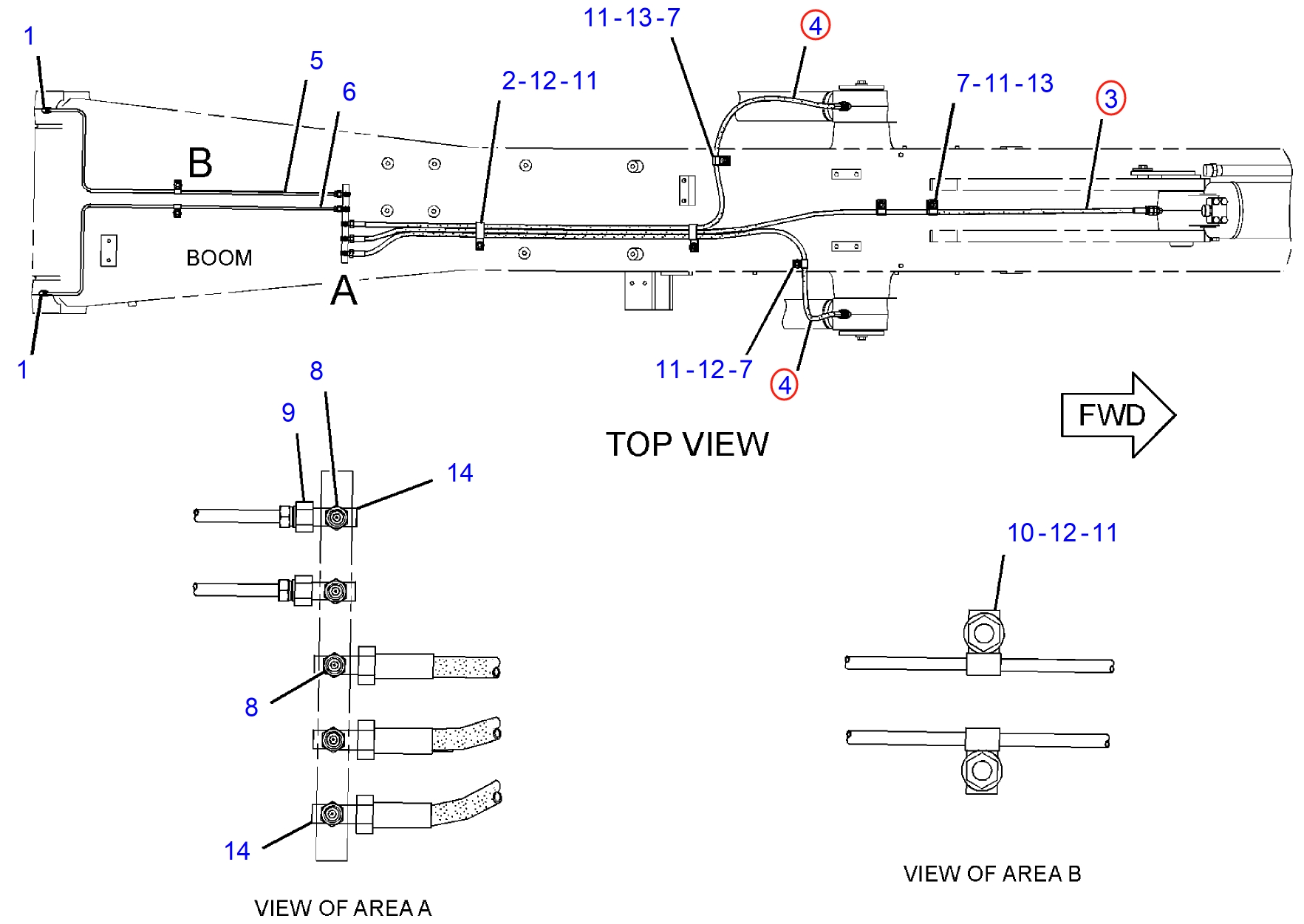

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 315-0922 before removing the hose.

Caterpillar CAT®314F CR installation diagram showing hydraulic hose 315-0922 at Pipe No. 4 — Caterpillar CAT®314F CRPart 315-0922 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 315-0922
Diagram pipe number: 4
Installation route: 大臂油缸黄油管
Hose specification: DN6;-4;10.3Mpa
Finished length: 1,800 mm
Working pressure: 10.3 MPa
Left fitting: 美制锥形外螺纹
Right fitting: 美制锥形外螺纹
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 2

121-8659

Installation route: 大臂油缸黄油管

Length: 2,000 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

Diagram Pipe No. 2

203-7400

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 1,900 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

Diagram Pipe No. 7

323-0856

Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管

Length: 1,720 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹
Right fitting: 美制锥形外螺纹

View full repair specifications

Diagram Pipe No. 6

166-3152

Installation route: 大臂连接销黄油管

Length: 2,430 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

Diagram Pipe No. 3

315-0921

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 2,320 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹
Right fitting: 美制锥形外螺纹

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
