Individual hose record

113-6726 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F · Attachments – Quick Coupler

Finished length720 mm

Locate this hose

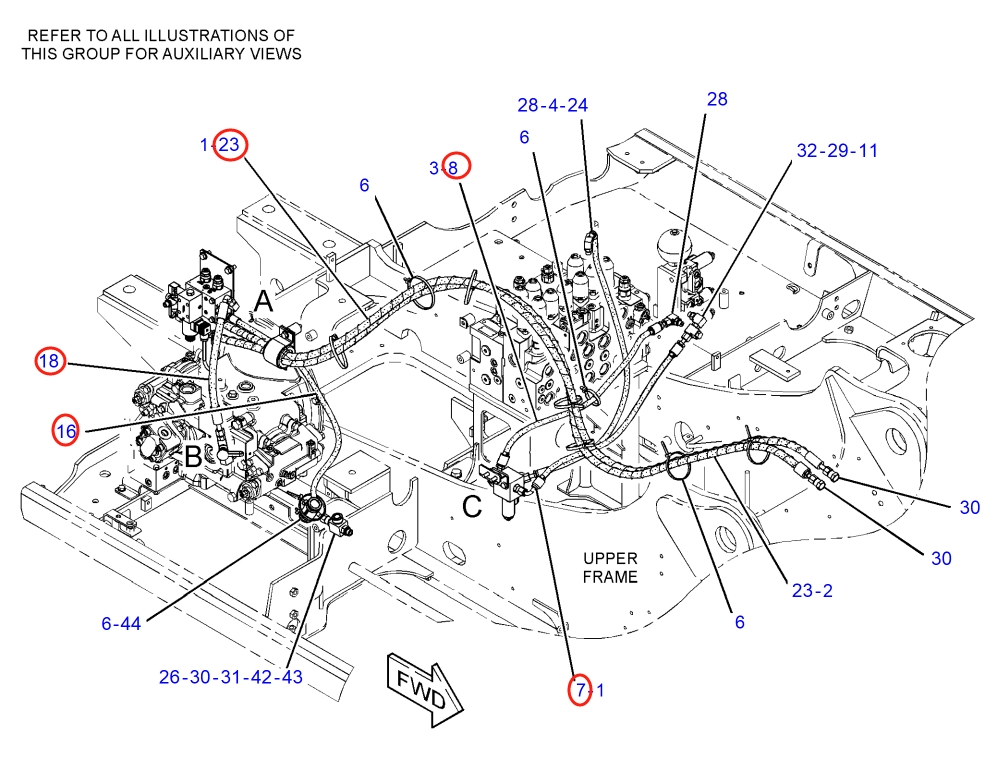

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 113-6726 before removing the hose.

Part number: 113-6726
Diagram pipe number: 8
Installation route: 快速联轴阀~蓄能器电磁阀
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 720 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 大臂前段(快换)~大臂后段(快换)

Length: 1,210 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 大臂(快换)~小臂(快换)

Length: 1,400 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 大臂后段快换管

Length: 2,560 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 大臂前段(快换)~大臂后段(快换)

Length: 1,250 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 大臂(快换)~小臂(快换)

Length: 1,540 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 大臂(快换)~小臂(快换)

Length: 1,500 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 23

Installation route: 大臂(快换)~控制阀(液压泵上)

Length: 2,670 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
