Individual hose record

8U-2130 Hose Repair Specifications

Excavator · Caterpillar · CAT®214B · Attachments – Breaker

Finished length2,350 mm

Locate this hose

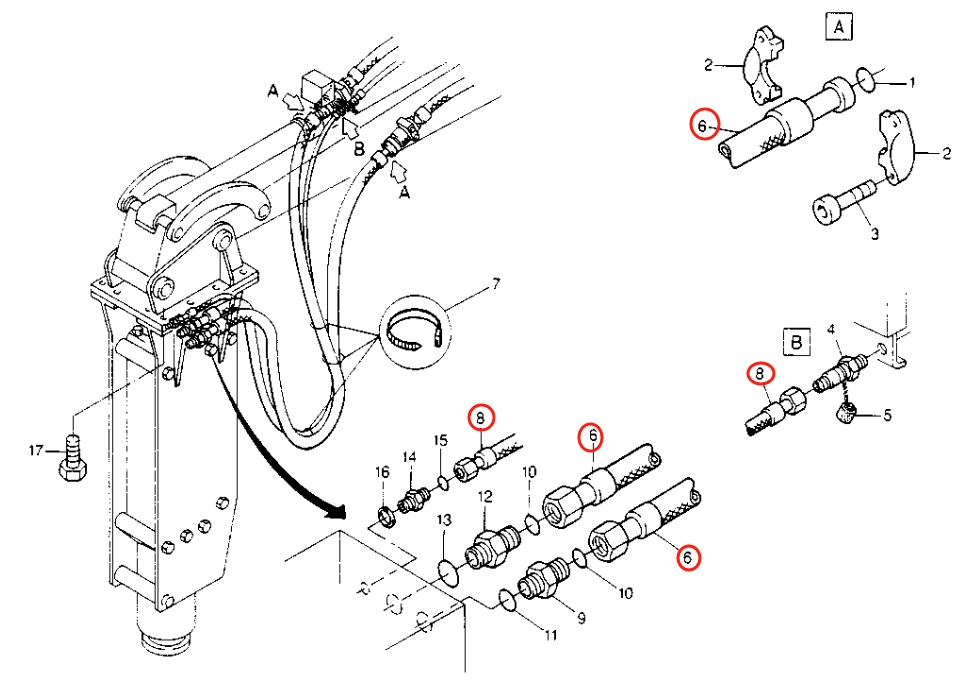

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 8U-2130 before removing the hose.

Part number: 8U-2130
Diagram pipe number: 6
Installation route: 大臂(破碎器)~破碎器
Hose specification: DN25;4SP-16;28Mpa
Finished length: 2,350 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 2

Same system

Diagram Pipe No. 10

Installation route: 电磁阀(破碎器)~

Length: 10,396 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 大臂(破碎器)~过渡阀块(小臂右侧)

Diagram Pipe No. 8

Installation route: 大臂(破碎器)~破碎器

Length: 2,347 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 大臂(破碎器)~过渡阀块(小臂左侧)

Diagram Pipe No. 9

Installation route: 电磁阀(破碎器)~过渡阀块

Length: 645 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
