Individual hose record

4I-1095 Hose Repair Specifications

Excavator · Caterpillar · CAT®312D · Boom Assembly

Finished length775 mm

Locate this hose

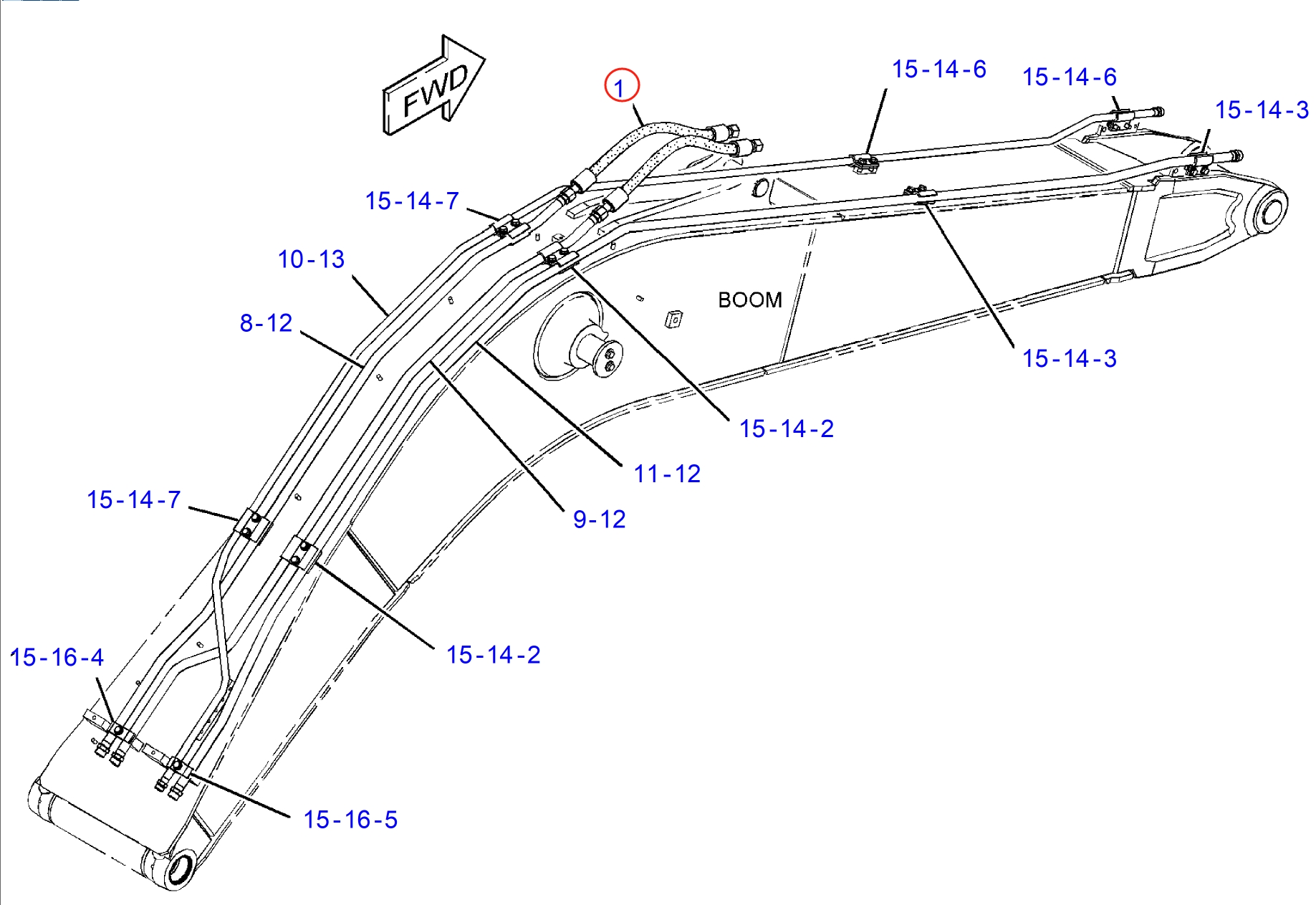

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4I-1095 before removing the hose.

Part number: 4I-1095
Diagram pipe number: 1
Installation route: 小臂油缸
Hose specification: DN19;6SH-12;42Mpa
Finished length: 775 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 10

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length: 780 mm
Specification: DN16;6SH-10;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 铲斗油缸左

Length: 1,300 mm
Specification: DN16;6SH-10;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
